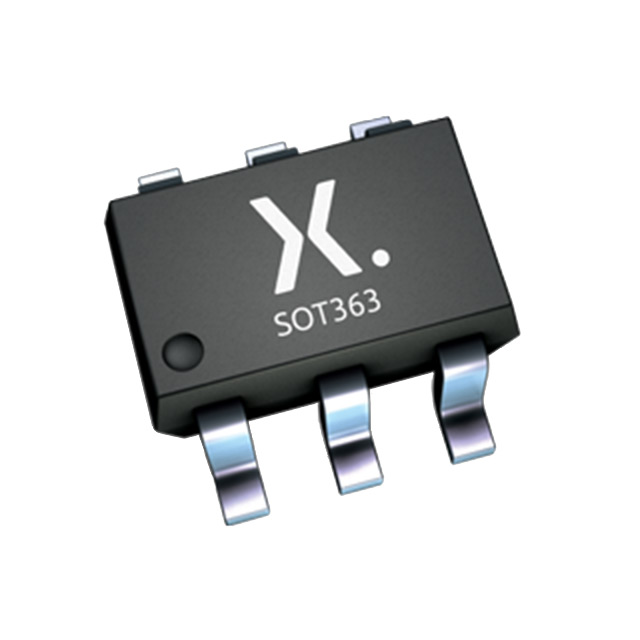

2N7002PS,115

Freescale Semiconductor - NXP

MOSFET 2N-CH 60V 0.32A 6TSSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Discrete Semiconductor Selection Guide

2N7002PS,115

Freescale Semiconductor - NXP

MOSFET 2N-CH 60V 0.32A 6TSSOP

Deep-Dive with AI

DocumentsDatasheet Discrete Semiconductor Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002PS,115

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	320 mA
Drain to Source Voltage (Vdss)	60 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	0.8 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	50 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	6-TSSOP, SC-88, SOT-363
Power - Max [Max]	420 mW
Qualification	AEC-Q100
Rds On (Max) @ Id, Vgs	1.6 Ohm
Supplier Device Package	6-TSSOP
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.4 V

2N7002NXBK Series

60 V, N-channel Trench MOSFET

Part	Vgs(th) (Max) @ Id	FET Type	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Drain to Source Voltage (Vdss)	Vgs (Max)	Technology	Package / Case	Rds On (Max) @ Id, Vgs	Qualification	FET Feature	Configuration	Operating Temperature	Power - Max [Max]	Grade	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
Freescale Semiconductor - NXP 2N7002NXAKR	2.1 V	N-Channel	10 V	5 V	TO-236AB	-55 °C	150 °C	0.43 nC	Surface Mount	20 pF	300 mA	190 mA	1.33 W 265 mW	60 V	20 V	MOSFET (Metal Oxide)	SC-59 SOT-23-3 TO-236-3	4.5 Ohm
Freescale Semiconductor - NXP 2N7002PS,115	2.4 V				6-TSSOP			0.8 nC	Surface Mount	50 pF		320 mA		60 V		MOSFET (Metal Oxide)	6-TSSOP SC-88 SOT-363	1.6 Ohm	AEC-Q100	Logic Level Gate	2 N-Channel (Dual)	150 °C	420 mW	Automotive
Freescale Semiconductor - NXP 2N7002F,215	2.5 V	N-Channel			TO-236AB	-55 °C	150 °C	0.69 nC	Surface Mount	50 pF		475 mA		60 V	30 V	MOSFET (Metal Oxide)	SC-59 SOT-23-3 TO-236-3	2 Ohm							4.5 V 10 V	830 mW
Freescale Semiconductor - NXP 2N7002NXBKR	2.1 V	N-Channel	10 V	5 V	TO-236AB	-55 °C	150 °C	1 nC	Surface Mount	23.6 pF		270 mA 330 mA	1.67 W 310 mW	60 V	20 V	MOSFET (Metal Oxide)	SC-59 SOT-23-3 TO-236-3	2.8 Ohm
Freescale Semiconductor - NXP 2N7002HR	2.5 V	N-Channel			TO-236AB	-65 °C	150 °C		Surface Mount	50 pF		300 mA		60 V	20 V	MOSFET (Metal Oxide)	SC-59 SOT-23-3 TO-236-3	5 Ohm	AEC-Q101					Automotive	4.5 V 10 V	830 mW
Freescale Semiconductor - NXP 2N7002BKV,115	2.1 V				SOT-666			0.6 nC	Surface Mount	50 pF		340 mA		60 V		MOSFET (Metal Oxide)	SOT-563 SOT-666	1.6 Ohm	AEC-Q101	Logic Level Gate	2 N-Channel (Dual)	150 °C	350 mW	Automotive
Freescale Semiconductor - NXP 2N7002BK,215	2.1 V	N-Channel			TO-236AB			0.6 nC	Surface Mount	50 pF		350 mA		60 V	20 V	MOSFET (Metal Oxide)	SC-59 SOT-23-3 TO-236-3	1.6 Ohm	AEC-Q101			150 °C		Automotive	10 V
Freescale Semiconductor - NXP 2N7002BKS/ZLX	2.1 V				6-TSSOP			0.6 nC	Surface Mount	50 pF		300 mA		60 V		MOSFET (Metal Oxide)	6-TSSOP SC-88 SOT-363	1.6 Ohm		Logic Level Gate	2 N-Channel (Dual)	150 °C	1.04 W
Freescale Semiconductor - NXP 2N7002HWX	2.4 V	N-Channel			SOT-323	-55 °C	150 °C		Surface Mount	34 pF		310 mA	310 mW	60 V	20 V	MOSFET (Metal Oxide)	SC-70 SOT-323	1.6 Ohm	AEC-Q101					Automotive	4.5 V 10 V		0.5 nC
Freescale Semiconductor - NXP 2N7002P,235	2.4 V	N-Channel			TO-236AB	-55 °C	150 °C		Surface Mount	50 pF		360 mA		60 V	20 V	MOSFET (Metal Oxide)	SC-59 SOT-23-3 TO-236-3	1.6 Ohm	AEC-Q101					Automotive	10 V	350 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.31
		10	$ 0.19
		100	$ 0.12
		500	$ 0.09
		1000	$ 0.08
	Digi-Reel®	1	$ 0.31
		10	$ 0.19
		100	$ 0.12
		500	$ 0.09
		1000	$ 0.08
	Tape & Reel (TR)	3000	$ 0.06
		6000	$ 0.05
		9000	$ 0.05
		15000	$ 0.05
		21000	$ 0.05
		30000	$ 0.04
		75000	$ 0.04
		150000	$ 0.04

Description

General part information

2N7002NXBK Series

N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
