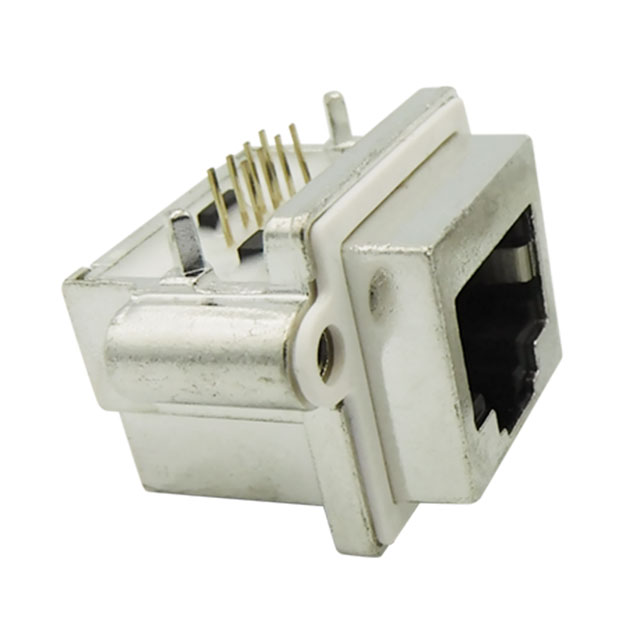

SS-60400-024
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTOR, MODULAR JACK, 1 X 1 (PORT), 8P8C, CAT6, IP67, PANEL MOUNT, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SS-60400-024
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTOR, MODULAR JACK, 1 X 1 (PORT), 8P8C, CAT6, IP67, PANEL MOUNT, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-60400-024 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount, Flange (2 Hole), Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | 90 ° |
| Ratings | Cat6 |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.04 | |
| 10 | $ 12.45 | |||
| 25 | $ 11.97 | |||
| 40 | $ 11.49 | |||
| 80 | $ 10.85 | |||
| 230 | $ 9.89 | |||
| 500 | $ 9.26 | |||
| 1000 | $ 8.49 | |||
Description
General part information
SS-60400 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat6
