SS-60400-002
ActiveBEL MAGNETIC SOLUTIONS

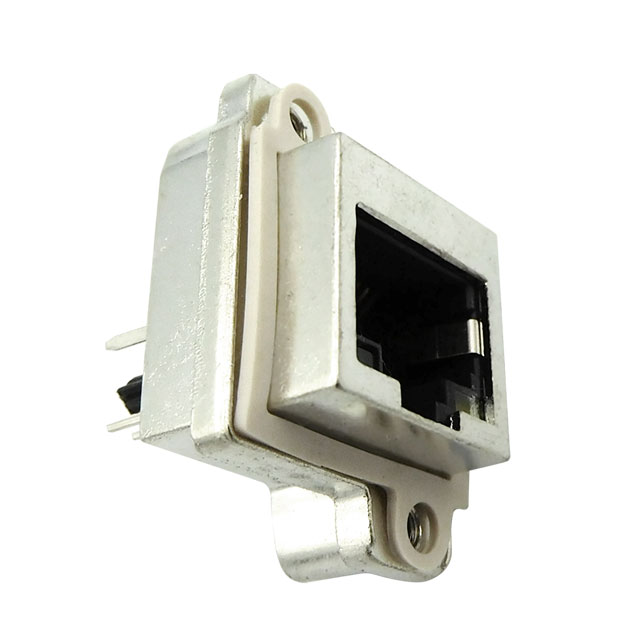

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT6, IP67, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SS-60400-002
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT6, IP67, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-60400-002 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Yellow, Green |
| Mounting Type | Panel Mount, Flange (2 Hole), Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | Vertical |
| Ratings | Cat6 |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SS-60400 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded Cat6
