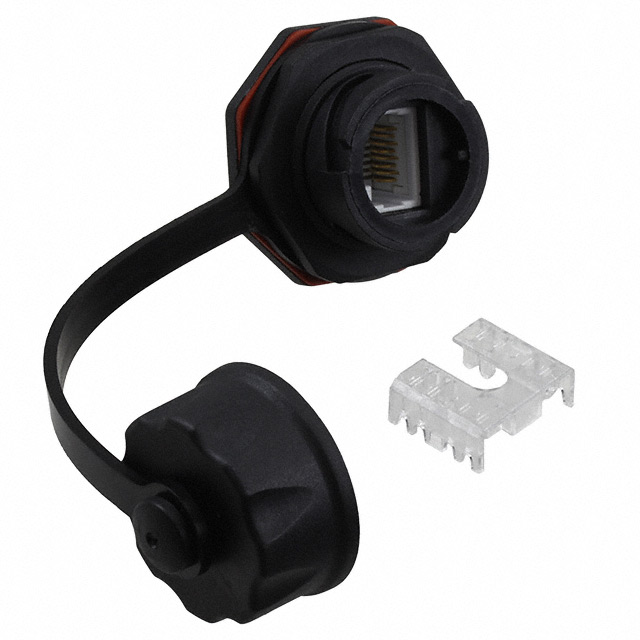

SS-60400-016

Active

BEL MAGNETIC SOLUTIONS

UNSHIELDED 1 CAT6 GOLD COPPER ALLOY WITHOUT LED ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SS-60400-016

Active

BEL MAGNETIC SOLUTIONS

UNSHIELDED 1 CAT6 GOLD COPPER ALLOY WITHOUT LED ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-60400-016

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Features	Cover, Circular Bayonet Coupling
Housing Material	Thermoplastic
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	Straight
Ratings	Cat6
Shielding	Unshielded
Tab Direction	User Selectable
Termination	IDC

SS-60400 Series

Part	Number of Positions/Contacts	Tab Direction	Ratings	LED Color	Contact Finish	Shielding	Housing Material	Contact Material	Number of Ports	Features	Connector Type	Orientation	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Ingress Protection	Orientation	Convert From (Adapter End)	Convert To (Adapter End)	Type	Mounting Feature
BEL MAGNETIC SOLUTIONS SS-60400-016	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Does Not Contain LED	Gold	Unshielded	Thermoplastic	Copper Alloy	1	Circular Bayonet Coupling Cover	Jack	Straight	1	IDC	50 µin	1.27 µm	Bulkhead Panel Mount	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-006	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Does Not Contain LED	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack	Vertical	1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-003	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Green Yellow	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack	Vertical	1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-017	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Does Not Contain LED	Gold	Shielded	Thermoplastic	Copper Alloy	1	Circular Bayonet Coupling Cover	Jack	Straight	1	IDC	50 µin	1.27 µm	Bulkhead Panel Mount	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-005	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Does Not Contain LED	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack	Vertical	1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-023	8p8c (RJ45 Ethernet)	Up	Cat6	Does Not Contain LED	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack		1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof	90 °
BEL MAGNETIC SOLUTIONS SS-60400-002	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Green Yellow	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack	Vertical	1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-001	8p8c (RJ45 Ethernet)	User Selectable	Cat6	Green Yellow	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack	Vertical	1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof
BEL MAGNETIC SOLUTIONS SS-60400-024	8p8c (RJ45 Ethernet)	Up	Cat6	Does Not Contain LED	Gold	Shielded	Thermoplastic	Copper Alloy	1		Jack		1	Solder	50 µin	1.27 µm	Panel Mount Flange (2 Hole) Through Hole	IP67 - Dust Tight Waterproof	90 °
BEL MAGNETIC SOLUTIONS SS-60400-025			Cat5e		Gold	Unshielded	Thermoplastic	Copper Alloy		Cap (Cover) Circular Threaded Coupling Industrial Environments					50 µin	1.27 µm	Bulkhead Panel Mount	IP67 - Dust Tight Waterproof		Jack 8p8c (RJ45) SealJack	8p8c (RJ45) Jack	Coupler	Front Side Nut Rear Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.95
		10	$ 9.70
		25	$ 9.33
		50	$ 8.96
		100	$ 8.76
LCSC	Piece	1	$ 23.94
		200	$ 9.55
		500	$ 9.23
		1000	$ 9.08

Description

General part information

SS-60400 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat6
