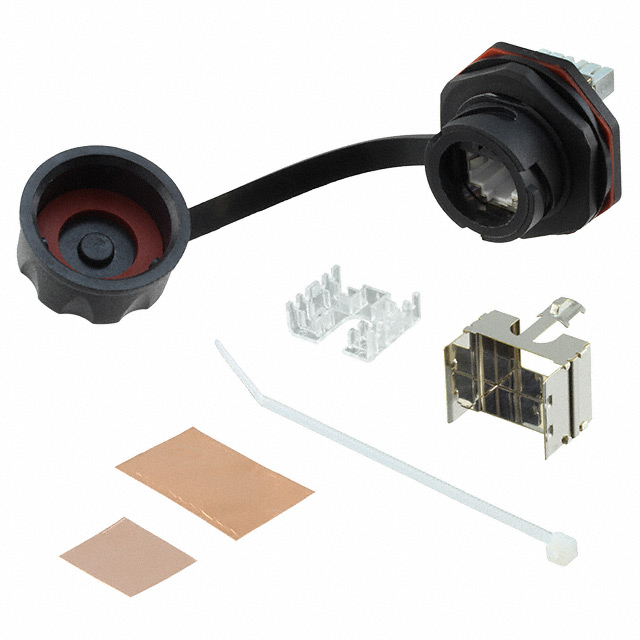

SS-60400-017
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD JACK 8P CAT6 SHLD IP67
Deep-Dive with AI
Search across all available documentation for this part.
SS-60400-017
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD JACK 8P CAT6 SHLD IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-60400-017 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Features | Cover, Circular Bayonet Coupling |
| Housing Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | Straight |
| Ratings | Cat6 |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SS-60400 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat6
