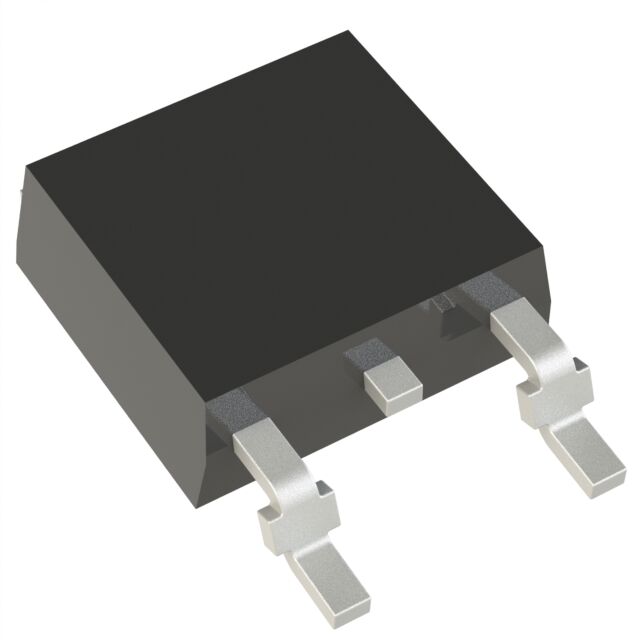

ZXMP6A17KTC

Active

Diodes Inc

POWER FIELD-EFFECT TRANSISTOR, 4.4A I(D), 60V, 0.125OHM, 1-ELEMENT, P-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, TO-252AA, GREEN, PLASTIC, TO-252, 3 PIN

Deep-Dive with AI

Search across all available documentation for this part.

ZXMP6A17KTC

Active

Diodes Inc

POWER FIELD-EFFECT TRANSISTOR, 4.4A I(D), 60V, 0.125OHM, 1-ELEMENT, P-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, TO-252AA, GREEN, PLASTIC, TO-252, 3 PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXMP6A17KTC

Current - Continuous Drain (Id) @ 25°C	4.4 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs	17.7 nC
Input Capacitance (Ciss) (Max) @ Vds	637 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	2.11 W
Rds On (Max) @ Id, Vgs	125 mOhm
Supplier Device Package	TO-252-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	1 V

ZXMP6A17E6Q Series

Dual P-Channel Enhancement Mode MOSFET

Part	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Supplier Device Package	Grade	FET Type	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Technology	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Qualification	Package / Case	Power Dissipation (Max) [Max]	Package / Case [y]	Package / Case [x]	FET Feature	Configuration
Diodes Inc ZXMP6A17E6QTA	60 V	637 pF	Surface Mount	3 V	-55 °C	150 °C	20 V	SOT-26	Automotive	P-Channel	2.3 A	17.7 nC	MOSFET (Metal Oxide)	1.1 W	125 mOhm	4.5 V 10 V	AEC-Q101	SOT-23-6
Diodes Inc ZXMP6A17KTC	60 V	637 pF	Surface Mount	1 V	-55 °C	150 °C	20 V	TO-252-3		P-Channel	4.4 A	17.7 nC	MOSFET (Metal Oxide)	2.11 W	125 mOhm	4.5 V 10 V		DPAK (2 Leads + Tab) SC-63 TO-252-3
Diodes Inc ZXMP6A17GTA	60 V	637 pF	Surface Mount	1 V	-55 °C	150 °C	20 V	SOT-223-3		P-Channel	3 A	17.7 nC	MOSFET (Metal Oxide)		125 mOhm	4.5 V 10 V		TO-261-4 TO-261AA	2 W
Diodes Inc ZXMP6A17GQTA	60 V	637 pF	Surface Mount	1 V	-55 °C	150 °C	20 V	SOT-223-3		P-Channel	3 A	17.7 nC	MOSFET (Metal Oxide)		125 mOhm	4.5 V 10 V		TO-261-4 TO-261AA	2 W
Diodes Inc ZXMP6A17N8TC	60 V	637 pF	Surface Mount	1 V	-55 °C	150 °C	20 V	8-SO		P-Channel	2.7 A	17.7 nC	MOSFET (Metal Oxide)	1.56 W	125 mOhm	4.5 V 10 V		8-SOIC		3.9 mm	0.154 in
Diodes Inc ZXMP6A17DN8TA	60 V	637 pF	Surface Mount	1 V	-55 °C	150 °C		8-SO			2.7 A	17.7 nC	MOSFET (Metal Oxide)		125 mOhm			8-SOIC		3.9 mm	0.154 in	Logic Level Gate	2 P-Channel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.81
		100	$ 0.53
		500	$ 0.42
		1000	$ 0.37
	Digi-Reel®	1	$ 1.05
		10	$ 0.81
		100	$ 0.53
		500	$ 0.42
		1000	$ 0.37
	Tape & Reel (TR)	2500	$ 0.33
		5000	$ 0.31
		7500	$ 0.29
		12500	$ 0.29

Description

General part information

ZXMP6A17E6Q Series

This new generation of high cell density trench MOSFETs from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
