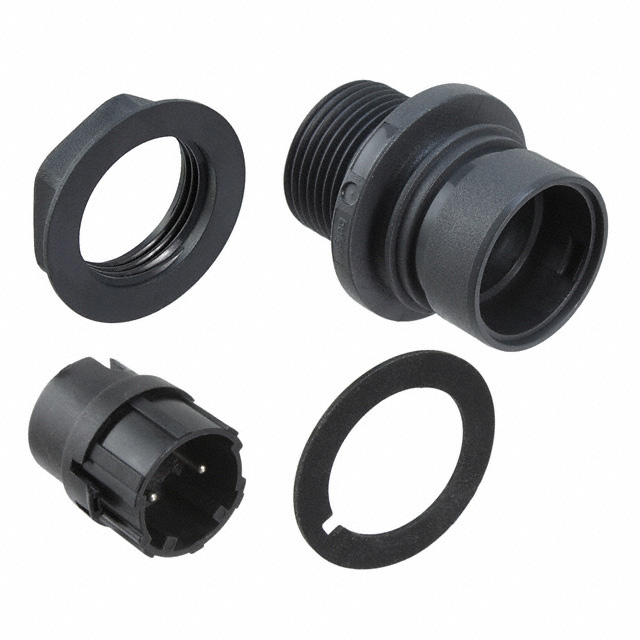

PXP6012/02P/ST - Bucaneer 6000 Series

PXP6012/02P/ST

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 6000 SERIES, RECEPTACLE, 2, PIN, SCREW, PANEL MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN6000 Series - Ethernet Buccaneer+3
PXP6012/02P/ST - Bucaneer 6000 Series

PXP6012/02P/ST

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 6000 SERIES, RECEPTACLE, 2, PIN, SCREW, PANEL MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN6000 Series - Ethernet Buccaneer+3

Technical Specifications

Parameters and characteristics for this part

SpecificationPXP6012/02P/ST
ColorGray
Connector TypePlug, Male Pins
Contact Finish - MatingNickel
Contact MaterialBrass
Current Rating (Amps)11 A, 16 A
Fastening TypePush-Twist
FeaturesUV Resistant
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Rear Side Nut
Number of Positions2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialPolycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
ShieldingUnshielded
TerminationScrew
Voltage Rating277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 19.47
10$ 16.88
25$ 15.99
50$ 15.76
100$ 13.91
250$ 12.98
500$ 12.70
NewarkEach 1$ 26.33
10$ 24.75
25$ 23.17
50$ 21.72
100$ 20.64
250$ 19.07
500$ 18.06
1000$ 15.28

Description

General part information

PXP6012 Series

2 (Power) Position Circular Connector Plug, Male Pins Screw
