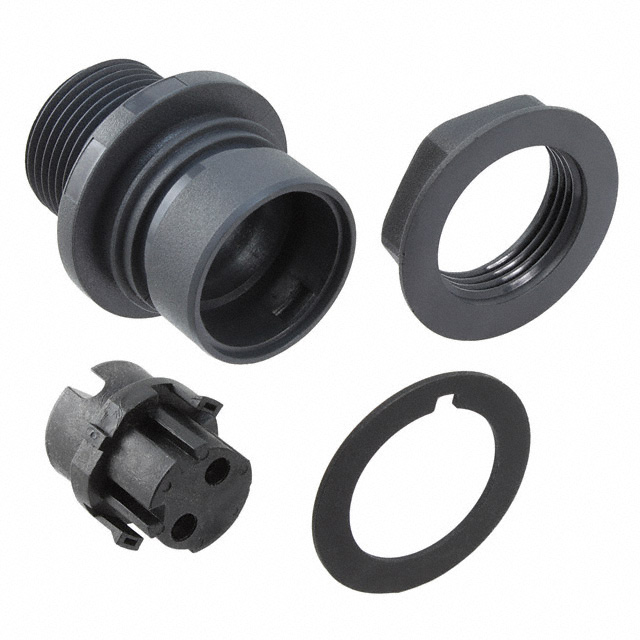

PXP6012/02S/ST
ActiveBULGIN LIMITED
CONN PLUG FMALE 2P NICKEL SCREW
Deep-Dive with AI
Search across all available documentation for this part.
PXP6012/02S/ST
ActiveBULGIN LIMITED
CONN PLUG FMALE 2P NICKEL SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXP6012/02S/ST |
|---|---|
| Color | Gray |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 11 A, 16 A |
| Fastening Type | Push-Twist |
| Features | UV Resistant |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.06 | |
| 10 | $ 16.23 | |||
| 25 | $ 14.70 | |||
| 50 | $ 13.66 | |||
| 100 | $ 12.72 | |||
| 250 | $ 12.29 | |||
Description
General part information
PXP6012 Series
2 (Power) Position Circular Connector Plug, Female Sockets Screw
