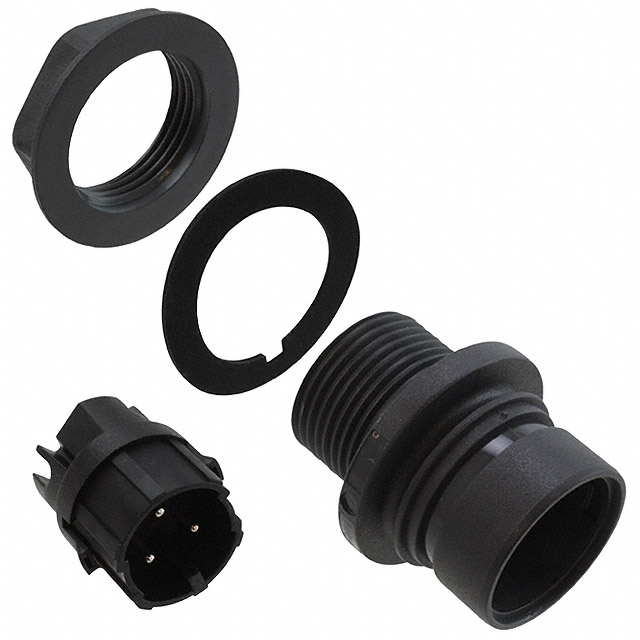

PXP6012/03P/ST - PXP6012/03P/ST

PXP6012/03P/ST

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 6000 SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN6000 Series Plastic Wiring Instr+2
PXP6012/03P/ST - PXP6012/03P/ST

PXP6012/03P/ST

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 6000 SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

DocumentsTechnical Data Sheet EN6000 Series Plastic Wiring Instr+2

Technical Specifications

Parameters and characteristics for this part

SpecificationPXP6012/03P/ST
ColorGray
Connector TypePlug, Male Pins
Contact Finish - MatingNickel
Contact MaterialBrass
Current Rating (Amps)11 A, 16 A
Fastening TypePush-Twist
FeaturesUV Resistant
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Rear Side Nut
Number of Positions [custom]3
Number of Positions [custom]1
Number of Positions [custom]2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialPolycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
ShieldingUnshielded
TerminationScrew
Voltage Rating277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 20.29
10$ 17.77
25$ 17.00
50$ 16.45
100$ 15.90
250$ 15.03
500$ 14.59
NewarkEach 1$ 28.81
10$ 26.48
25$ 24.76
50$ 23.78
100$ 22.58
250$ 21.53
500$ 20.11

Description

General part information

PXP6012 Series

3 (2 Power + PE) Position Circular Connector Plug, Male Pins Screw
