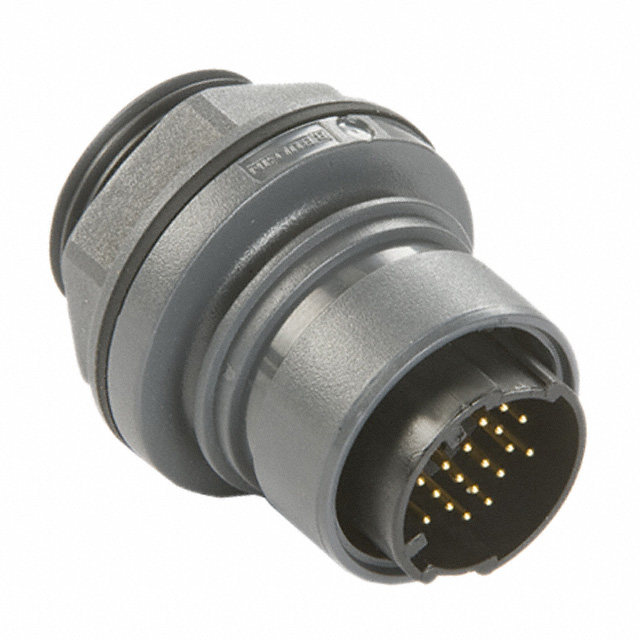

PXP6012/22P/CR

Active

BULGIN LIMITED

CONN RCPT HSG MALE 22POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

Documents6000 Series Plastic Wiring Instr 6000 Series CE Cert +1

PXP6012/22P/CR

Active

BULGIN LIMITED

CONN RCPT HSG MALE 22POS PNL MT

Deep-Dive with AI

Documents6000 Series Plastic Wiring Instr 6000 Series CE Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXP6012/22P/CR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Push-Twist
Housing Color	Gray
Includes	Connector, Washer, Nut
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	22
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
Shielding	Unshielded
Type	For Male Pins

PXP6012 Series

Part	Voltage Rating	Fastening Type	Material Flammability Rating	Shielding	Current Rating (Amps)	Mounting Feature	Ingress Protection	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Shell Material	Contact Material	Primary Material	Contact Finish - Mating	Orientation	Number of Positions	Note	Contact Type	Type	Housing Color	Contact Shape	Includes
BULGIN LIMITED PXP6012/03S/ST	277 VAC/DC	Push-Twist	UL94 V-0	Unshielded	11 A 16 A	Bulkhead - Rear Side Nut	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	UV Resistant	3	1	2	Gray	-40 °C	120 °C	Female Sockets Plug	Screw	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Brass	Plastic	Nickel	Keyed
BULGIN LIMITED PXP6012/02P/ST	277 VAC/DC	Push-Twist	UL94 V-0	Unshielded	11 A 16 A	Bulkhead - Rear Side Nut	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	UV Resistant				Gray	-40 °C	120 °C	Male Pins Plug	Screw	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Brass	Plastic	Nickel	Keyed	2
BULGIN LIMITED PXP6012/03P/ST	277 VAC/DC	Push-Twist	UL94 V-0	Unshielded	11 A 16 A	Bulkhead - Rear Side Nut	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	UV Resistant	3	1	2	Gray	-40 °C	120 °C	Male Pins Plug	Screw	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Brass	Plastic	Nickel	Keyed
BULGIN LIMITED PXP6012/16P/CR		Push-Twist	UL94 V-0	Unshielded		Bulkhead - Rear Side Nut	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K						-40 °C	120 °C	Receptacle Housing		Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free		Plastic		Keyed	16	Contacts Not Included	Crimp and Solder Cup	For Male Pins	Gray	Circular	Connector Nut Washer
BULGIN LIMITED PXP6012/02S/ST	277 VAC/DC	Push-Twist	UL94 V-0	Unshielded	11 A 16 A	Bulkhead - Rear Side Nut	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	UV Resistant				Gray	-40 °C	120 °C	Female Sockets Plug	Screw	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Brass	Plastic	Nickel	Keyed	2
BULGIN LIMITED PXP6012/22P/CR		Push-Twist	UL94 V-0	Unshielded		Bulkhead - Rear Side Nut	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K						-40 °C	120 °C	Receptacle Housing		Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free		Plastic		Keyed	22	Contacts Not Included	Crimp and Solder Cup	For Male Pins	Gray	Circular	Connector Nut Washer

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.35
