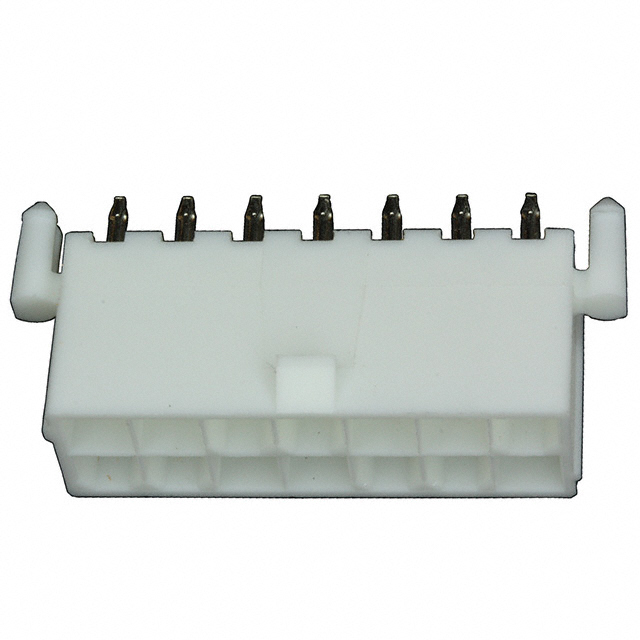

0039299147

Active

Molex

CONN HEADER VERT 14POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Color Variation Spec Datasheet +2

0039299147

Active

Molex

CONN HEADER VERT 14POS 4.2MM

Deep-Dive with AI

DocumentsMini-Fit Jr Color Variation Spec Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039299147

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag

...

Part	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Rows	Applications	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Material	Insulation Material	Fastening Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Shrouding	Contact Finish - Mating	Features	Number of Positions
Molex 0039299247	Tin	Through Hole	35.4 µin	0.9 µm	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in	24	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	35 µin	0.9 µm	Solder	Shrouded - 4 Wall
Molex 0039299147	Tin	Through Hole	35.4 µin	0.9 µm	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in	14	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	35 µin	0.9 µm	Solder	Shrouded - 4 Wall
Molex 0039290203	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	20	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold
Molex 0039295243	Tin	Through Hole Right Angle	30 Áin	0.76 Ám	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	24	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold	Mounting Flange
Molex 0039290243	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	24	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold
Molex 0039295023	Tin	Through Hole Right Angle	30 Áin	0.76 Ám	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural			2	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold	Mounting Flange
Molex 0039296168	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in		Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold		16
Molex 0039291148	Tin	Through Hole Right Angle	100 çin	2.54 çm	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	14	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall		Mounting Flange
Molex 0039291127	Tin	Through Hole Right Angle	100 çin	2.54 çm	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in	12	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall		Mounting Flange
Molex 0039310207	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	20	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.02
		10	$ 2.30
		80	$ 1.86
		440	$ 1.60
		945	$ 1.51
		4900	$ 1.35

Description

General part information

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag
