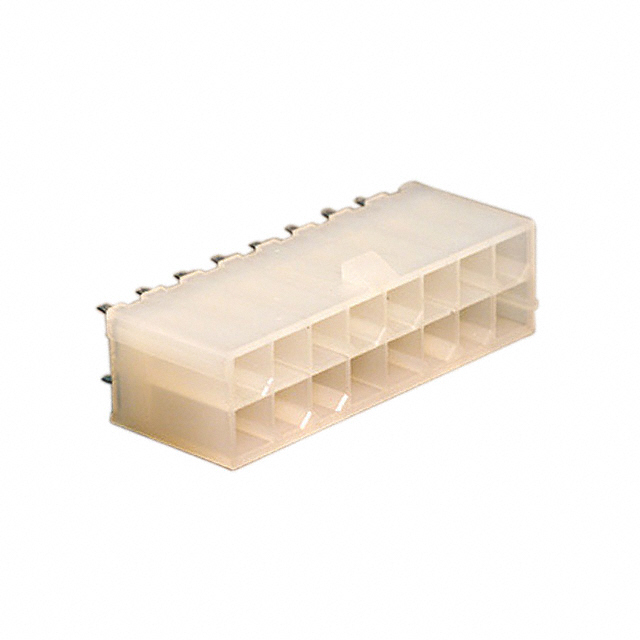

0039296168 - 39-29-0163, 39-29-6168

0039296168

Active
Molex

0039296168 MOLEX CONNECTOR HEADER & PCB RECEPTACLES WIRE TO BOARD HDR 16POWER POS 4.2MM SOLDER THROUGH-HOLE - ARROW.COM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMini-Fit Jr Test Summary+2
0039296168 - 39-29-0163, 39-29-6168

0039296168

Active
Molex

0039296168 MOLEX CONNECTOR HEADER & PCB RECEPTACLES WIRE TO BOARD HDR 16POWER POS 4.2MM SOLDER THROUGH-HOLE - ARROW.COM

Deep-Dive with AI

DocumentsDatasheetMini-Fit Jr Test Summary+2

Technical Specifications

Parameters and characteristics for this part

Specification0039296168
ApplicationsIndustrial, General Purpose, Telecommunications
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Finish Thickness - Post2.54 µm
Contact Finish Thickness - Post100 µin
Contact Length - Post3.5 mm
Contact Length - Post0.138 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeLocking Ramp
Insulation ColorNatural
Insulation Height12.8 mm
Insulation Height0.504 in
Insulation MaterialPolyamide (PA66), Nylon 6/6
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions16
Number of Positions LoadedAll
Number of Rows2
Pitch - Mating4.2 mm
Pitch - Mating0.165 in
Row Spacing - Mating4.2 mm
Row Spacing - Mating0.165 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag

...
PartContact Finish - PostMounting TypeContact Finish Thickness - MatingContact Finish Thickness - MatingStyleInsulation HeightInsulation HeightContact Length - PostContact Length - PostNumber of RowsApplicationsMaterial Flammability RatingInsulation ColorPitch - MatingPitch - MatingNumber of PositionsContact TypeContact ShapeRow Spacing - MatingRow Spacing - MatingNumber of Positions LoadedContact MaterialInsulation MaterialFastening TypeConnector TypeContact Finish Thickness - PostContact Finish Thickness - PostTerminationShroudingContact Finish - MatingFeaturesNumber of Positions
Molex
0039299247
Tin
Through Hole
35.4 µin
0.9 µm
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
24
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
35 µin
0.9 µm
Solder
Shrouded - 4 Wall
Molex
0039299147
Tin
Through Hole
35.4 µin
0.9 µm
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
14
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
35 µin
0.9 µm
Solder
Shrouded - 4 Wall
Molex
0039290203
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
20
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Molex
0039295243
Tin
Through Hole
Right Angle
30 Áin
0.76 Ám
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
24
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Mounting Flange
Molex
0039290243
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
24
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Molex
0039295023
Tin
Through Hole
Right Angle
30 Áin
0.76 Ám
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
2
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Mounting Flange
Molex
0039296168
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
16
Molex
0039291148
Tin
Through Hole
Right Angle
100 çin
2.54 çm
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
14
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Mounting Flange
Molex
0039291127
Tin
Through Hole
Right Angle
100 çin
2.54 çm
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
12
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Mounting Flange
Molex
0039310207
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
20
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 4.59
DigikeyBulk 1$ 5.76
10$ 5.04
150$ 4.23

Description

General part information

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag
