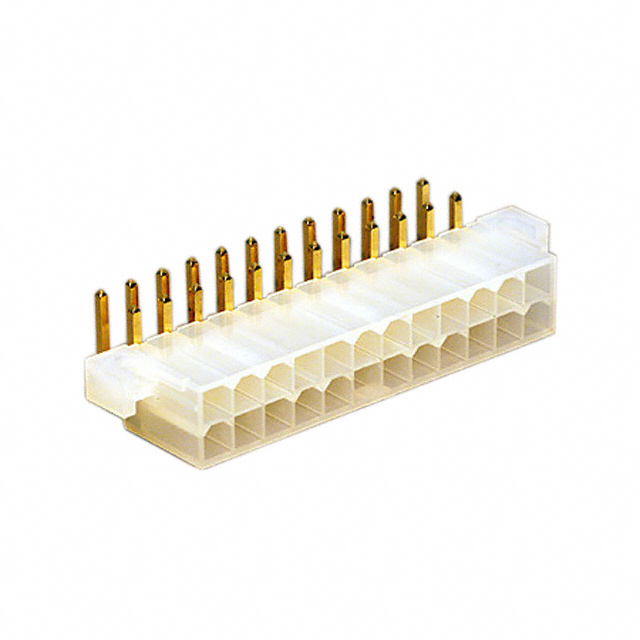

0039295243 - 39-29-5243

0039295243

Active
Molex

CONN HEADER R/A 24POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Test Summary5556-001 Prod Spec+2
0039295243 - 39-29-5243

0039295243

Active
Molex

CONN HEADER R/A 24POS 4.2MM

Deep-Dive with AI

DocumentsMini-Fit Jr Test Summary5556-001 Prod Spec+2

Technical Specifications

Parameters and characteristics for this part

Specification0039295243
ApplicationsIndustrial, General Purpose, Telecommunications
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Finish Thickness - Post2.54 µm
Contact Finish Thickness - Post100 µin
Contact Length - Post3.6 mm
Contact Length - Post0.142 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeLocking Ramp
FeaturesMounting Flange
Insulation ColorNatural
Insulation MaterialPolyamide (PA66), Nylon 6/6
Material Flammability RatingUL94 V-2
Mounting TypeThrough Hole, Right Angle
Number of Positions24
Number of Positions LoadedAll
Number of Rows2
Pitch - Mating4.2 mm
Pitch - Mating0.165 in
Row Spacing - Mating4.2 mm
Row Spacing - Mating0.165 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag

...
PartContact Finish - PostMounting TypeContact Finish Thickness - MatingContact Finish Thickness - MatingStyleInsulation HeightInsulation HeightContact Length - PostContact Length - PostNumber of RowsApplicationsMaterial Flammability RatingInsulation ColorPitch - MatingPitch - MatingNumber of PositionsContact TypeContact ShapeRow Spacing - MatingRow Spacing - MatingNumber of Positions LoadedContact MaterialInsulation MaterialFastening TypeConnector TypeContact Finish Thickness - PostContact Finish Thickness - PostTerminationShroudingContact Finish - MatingFeaturesNumber of Positions
Molex
0039299247
Tin
Through Hole
35.4 µin
0.9 µm
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
24
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
35 µin
0.9 µm
Solder
Shrouded - 4 Wall
Molex
0039299147
Tin
Through Hole
35.4 µin
0.9 µm
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
14
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
35 µin
0.9 µm
Solder
Shrouded - 4 Wall
Molex
0039290203
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
20
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Molex
0039295243
Tin
Through Hole
Right Angle
30 Áin
0.76 Ám
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
24
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Mounting Flange
Molex
0039290243
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
24
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Molex
0039295023
Tin
Through Hole
Right Angle
30 Áin
0.76 Ám
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
2
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
Mounting Flange
Molex
0039296168
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold
16
Molex
0039291148
Tin
Through Hole
Right Angle
100 çin
2.54 çm
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
14
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Mounting Flange
Molex
0039291127
Tin
Through Hole
Right Angle
100 çin
2.54 çm
Board to Cable/Wire
3.6 mm
0.142 in
2
General Purpose
Industrial
Telecommunications
UL94 V-0
Natural
4.2 mm
0.165 in
12
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Mounting Flange
Molex
0039310207
Tin
Through Hole
30 Áin
0.76 Ám
Board to Cable/Wire
12.8 mm
0.504 in
3.5 mm
0.138 in
2
General Purpose
Industrial
Telecommunications
UL94 V-2
Natural
4.2 mm
0.165 in
20
Male Pin
Square
4.2 mm
0.165 in
All
Brass
Polyamide (PA66)
Nylon 6/6
Locking Ramp
Header
100 µin
2.54 µm
Solder
Shrouded - 4 Wall
Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 7.38
10$ 5.72
100$ 4.61
500$ 4.07
1000$ 3.89

Description

General part information

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag
