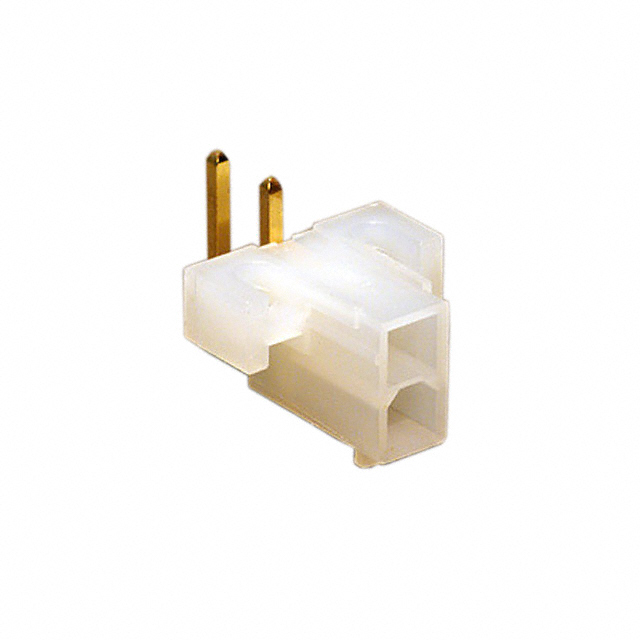

0039295023

Active

Molex

CONN HEADER R/A 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Test Summary Tin Whisker Formation Change 27/Jul/2011 +2

0039295023

Active

Molex

CONN HEADER R/A 2POS

Deep-Dive with AI

DocumentsMini-Fit Jr Test Summary Tin Whisker Formation Change 27/Jul/2011 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039295023

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Mounting Flange
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag

...

Part	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Rows	Applications	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Material	Insulation Material	Fastening Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Shrouding	Contact Finish - Mating	Features	Number of Positions
Molex 0039299247	Tin	Through Hole	35.4 µin	0.9 µm	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in	24	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	35 µin	0.9 µm	Solder	Shrouded - 4 Wall
Molex 0039299147	Tin	Through Hole	35.4 µin	0.9 µm	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in	14	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	35 µin	0.9 µm	Solder	Shrouded - 4 Wall
Molex 0039290203	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	20	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold
Molex 0039295243	Tin	Through Hole Right Angle	30 Áin	0.76 Ám	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	24	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold	Mounting Flange
Molex 0039290243	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	24	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold
Molex 0039295023	Tin	Through Hole Right Angle	30 Áin	0.76 Ám	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural			2	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold	Mounting Flange
Molex 0039296168	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in		Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold		16
Molex 0039291148	Tin	Through Hole Right Angle	100 çin	2.54 çm	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	14	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall		Mounting Flange
Molex 0039291127	Tin	Through Hole Right Angle	100 çin	2.54 çm	Board to Cable/Wire			3.6 mm	0.142 in	2	General Purpose Industrial Telecommunications	UL94 V-0	Natural	4.2 mm	0.165 in	12	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall		Mounting Flange
Molex 0039310207	Tin	Through Hole	30 Áin	0.76 Ám	Board to Cable/Wire	12.8 mm	0.504 in	3.5 mm	0.138 in	2	General Purpose Industrial Telecommunications	UL94 V-2	Natural	4.2 mm	0.165 in	20	Male Pin	Square	4.2 mm	0.165 in	All	Brass	Polyamide (PA66) Nylon 6/6	Locking Ramp	Header	100 µin	2.54 µm	Solder	Shrouded - 4 Wall	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.50
		10	$ 1.28
		100	$ 1.06
		1200	$ 0.83
		5400	$ 0.74
		10200	$ 0.72

Description

General part information

003929 Series

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag

0039295023

Deep-Dive with AI

0039295023

Deep-Dive with AI

Technical Specifications

003929 Series

Pricing

Description

003929 Series

Documents

Mini-Fit Jr Test Summary

Tin Whisker Formation Change 27/Jul/2011

Mini-Fit Jr Color Variation Spec

5556-001 Prod Spec

003929 Series
