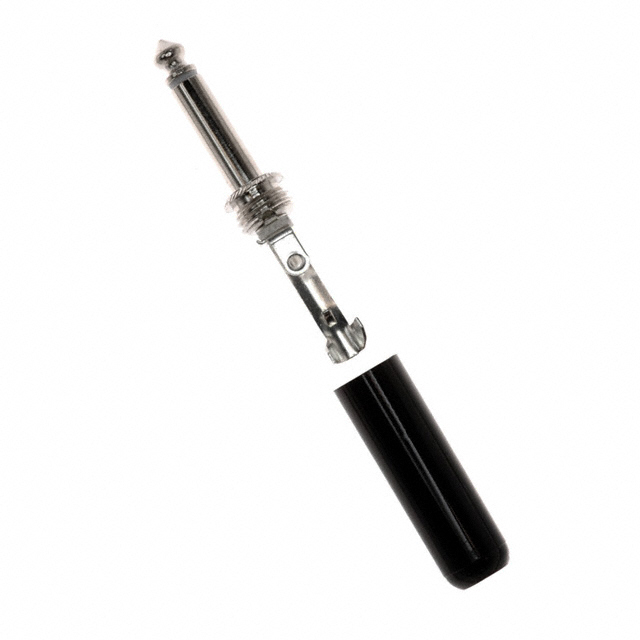

250
ActiveSwitchcraft Inc.
CONN PLUG MONO 6.35MM 2COND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
250
ActiveSwitchcraft Inc.
CONN PLUG MONO 6.35MM 2COND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 250 |
|---|---|
| Actual Diameter [diameter] | 0.25 in |
| Actual Diameter [diameter] | 6.35 mm |
| Body Color | Silver, Black |
| Body Material | Copper Alloy |
| Cable Opening [custom] | 0.297 in |
| Cable Opening [custom] | 7.54 mm |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Gender | Male |
| Housing Material | Plastic |
| Includes | 1 Connector, 1 Handle |
| Internal Switch(s) | False |
| Mating Length/Depth | 1.2 in |
| Mating Length/Depth | 30.5 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
Slim-Line Series
Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange
...
| Part | Contact Material - Plating | Termination | Gender | Shielding | Signal Lines | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Body Color | Connector Type | Mounting Type | Body Material | Actual Diameter [diameter] | Actual Diameter [diameter] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Housing Material | Internal Switch(s) | Contact Material | Shell Finish | Primary Material | Mounting Feature | Shell Size - Insert | Voltage Rating | Features | Shell Material | Contact Finish - Mating | Number of Positions | Fastening Type | Applications | Color | Orientation | Insert Material | Current Rating (Amps) | Cable Opening [custom] | Cable Opening [custom] | Contact Material - Plating [custom] | Includes | Mating Length/Depth | Mating Length/Depth | Termination Style | Actuator Type | Bushing Thread | Actuator Material | Actuator Length [x] | Illumination | Material | Accessory Type | For Use With/Related Products | Orientation | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. | Tin | Solder Eyelet(s) | Female | Shielded | Mono | 3.55 mm | 0.14 " | Silver | Phone Jack | Free Hanging (In-Line) | Copper Alloy | 0.144 in | 3.66 mm | 2 | 2 | Copper Alloy | Steel | |||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Male Pins Receptacle | Brass | Nickel | Metal | Bulkhead - Rear Side Nut | XLR | 125 VAC | Ground | Zinc | Silver | 4 | Latch Lock | Audio Instrumentation | Silver | Keyed | Polyester | 10 A | |||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Solder | Male | Unshielded | Mono | Black Silver | Phone Plug | Free Hanging (In-Line) | Copper Alloy | 0.25 in | 6.35 mm | 2 | 2 | Plastic | Brass | 0.297 in | 7.54 mm | Nickel | 1 Connector 1 Handle | 1.2 in | 30.5 mm | ||||||||||||||||||||||||||||||||
Switchcraft Inc. | Panel Mount Right Angle | Solder Lug | Standard Round | 15/32-32 | Thermoplastic | 22.22 mm | Non-Illuminated | |||||||||||||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Weathertight | Black | Thermoplastic Rubber | Cap (Cover) Sealing | EN3® Series Plug | |||||||||||||||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Screw | Female | Unshielded | Mono | Black | Phone Jack | Free Hanging (In-Line) | Copper Alloy | 0.252 " | 6.4 mm | 2 | 2 | Polyamide (PA) Nylon | Brass | 0.26 in | 6.6 mm | Nickel | 1 Connector 1 Handle | ||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Solder | Shielded | Male Pins Plug | Free Hanging (In-Line) | Nickel | Metal | DIN | Backshell Cable Clamp Strain Relief | Zinc Die Cast | Push-Pull | Gray Silver | Plastic | 2 | Plastic | ||||||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Female Sockets Insert | Copper Alloy | Mini XLR | 125 VAC | Insert Only Requires Shell | Silver | Thermoplastic | 4 A | 85 °C | -55 °C | ||||||||||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Female Sockets Plug | Phosphor Bronze | Metal | Bulkhead - Rear Side Nut | XLR | 125 VAC | Ground | Stainless Steel | Silver | Latch Lock | Audio Instrumentation | Silver | Keyed | Polyester | 15 A | |||||||||||||||||||||||||||||||||||||
Switchcraft Inc. | Male Pins Receptacle | Brass | Nickel | Metal | Flange | XLR | 125 VAC | Ground | Zinc | Silver | Latch Lock | Audio Instrumentation | Silver | Keyed | Polyester | 15 A |
