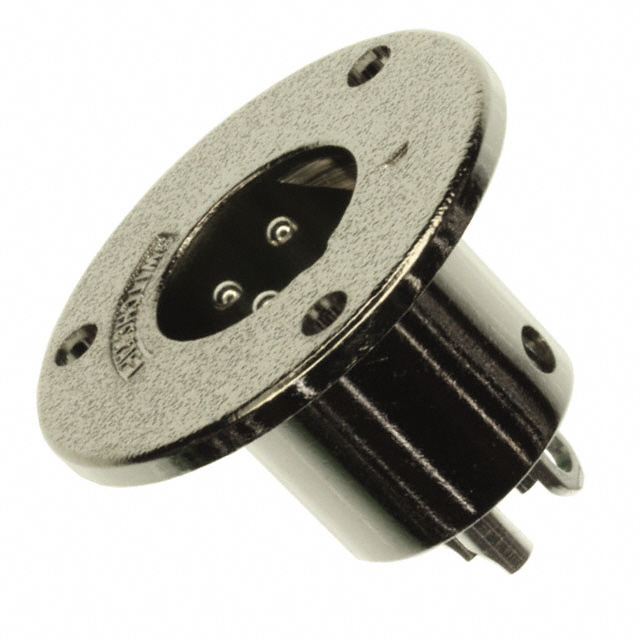

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3M

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3M

Applications	Audio, Instrumentation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	Polyester
Mounting Feature	Flange
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc
Shell Size - Insert	XLR
Voltage Rating	125 VAC

Slim-Line Series
