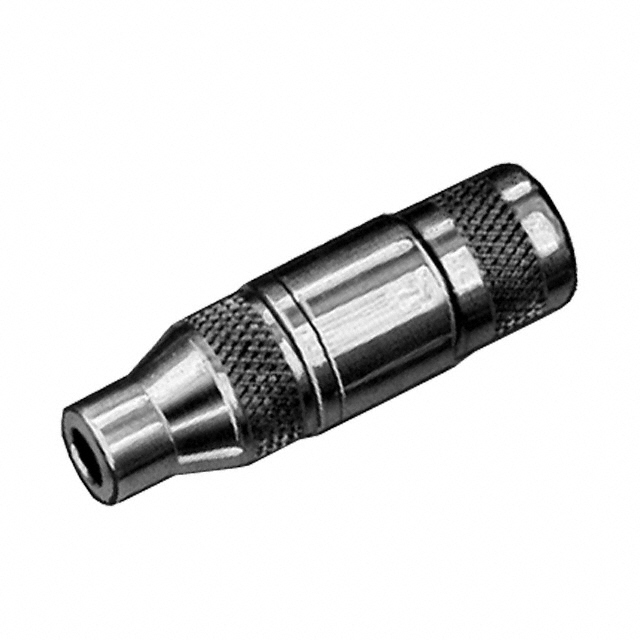

CONN 1/4" EXTENSION JACK F 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

125

Active

Switchcraft Inc.

CONN 1/4" EXTENSION JACK F 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	125

Actual Diameter [diameter]	0.144 in
Actual Diameter [diameter]	3.66 mm
Body Color	Silver
Body Material	Copper Alloy
Connector Type	Phone Jack
Contact Material	Steel
Contact Material - Plating	Tin
Gender	Female
Housing Material	Copper Alloy
Industry Recognized Mating Diameter [diameter]	3.55 mm
Industry Recognized Mating Diameter [diameter]	0.14 "
Internal Switch(s)	False
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Shielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

Slim-Line Series

Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange

...

Part	Contact Material - Plating	Termination	Gender	Shielding	Signal Lines	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Connector Type	Mounting Type	Body Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Contact Material	Shell Finish	Primary Material	Mounting Feature	Shell Size - Insert	Voltage Rating	Features	Shell Material	Contact Finish - Mating	Number of Positions	Fastening Type	Applications	Color	Orientation	Insert Material	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Contact Material - Plating [custom]	Includes	Mating Length/Depth	Mating Length/Depth	Termination Style	Actuator Type	Bushing Thread	Actuator Material	Actuator Length [x]	Illumination	Material	Accessory Type	For Use With/Related Products	Orientation	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. 125	Tin	Solder Eyelet(s)	Female	Shielded	Mono	3.55 mm	0.14 "	Silver	Phone Jack	Free Hanging (In-Line)	Copper Alloy	0.144 in	3.66 mm	2	2	Copper Alloy	Steel
Switchcraft Inc. B4M									Male Pins Receptacle								Brass	Nickel	Metal	Bulkhead - Rear Side Nut	XLR	125 VAC	Ground	Zinc	Silver	4	Latch Lock	Audio Instrumentation	Silver	Keyed	Polyester	10 A
Switchcraft Inc. 250		Solder	Male	Unshielded	Mono			Black Silver	Phone Plug	Free Hanging (In-Line)	Copper Alloy	0.25 in	6.35 mm	2	2	Plastic	Brass																0.297 in	7.54 mm	Nickel	1 Connector 1 Handle	1.2 in	30.5 mm
Switchcraft Inc. 12015X										Panel Mount Right Angle																													Solder Lug	Standard Round	15/32-32	Thermoplastic	22.22 mm	Non-Illuminated
Switchcraft Inc. EN3CAP																							Weathertight						Black																Thermoplastic Rubber	Cap (Cover) Sealing	EN3® Series Plug
Switchcraft Inc. 820		Screw	Female	Unshielded	Mono			Black	Phone Jack	Free Hanging (In-Line)	Copper Alloy	0.252 "	6.4 mm	2	2	Polyamide (PA) Nylon	Brass																0.26 in	6.6 mm	Nickel	1 Connector 1 Handle
Switchcraft Inc. 05GM3M		Solder		Shielded					Male Pins Plug	Free Hanging (In-Line)								Nickel	Metal		DIN		Backshell Cable Clamp Strain Relief	Zinc Die Cast			Push-Pull		Gray Silver		Plastic																	2	Plastic
Switchcraft Inc. TQG5F									Female Sockets Insert								Copper Alloy				Mini XLR	125 VAC	Insert Only Requires Shell		Silver						Thermoplastic	4 A																		85 °C	-55 °C
Switchcraft Inc. B3F									Female Sockets Plug								Phosphor Bronze		Metal	Bulkhead - Rear Side Nut	XLR	125 VAC	Ground	Stainless Steel	Silver		Latch Lock	Audio Instrumentation	Silver	Keyed	Polyester	15 A
Switchcraft Inc. C3M									Male Pins Receptacle								Brass	Nickel	Metal	Flange	XLR	125 VAC	Ground	Zinc	Silver		Latch Lock	Audio Instrumentation	Silver	Keyed	Polyester	15 A
