B3F

Active

Switchcraft Inc.

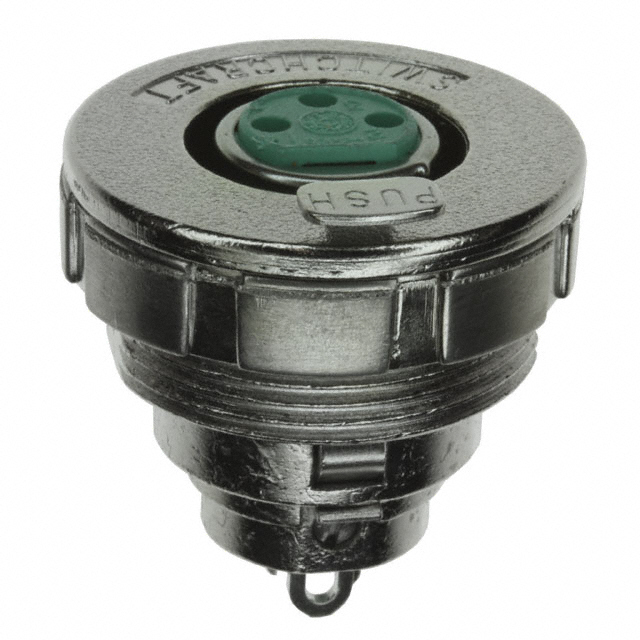

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B3F

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B3F

Applications	Audio, Instrumentation
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	Polyester
Mounting Feature	Bulkhead - Rear Side Nut
Orientation	Keyed
Primary Material	Metal
Shell Material	Stainless Steel
Shell Size - Insert	XLR
Voltage Rating	125 VAC

Slim-Line Series

Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange

...

Part	Contact Material - Plating	Termination	Gender	Shielding	Signal Lines	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Connector Type	Mounting Type	Body Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Contact Material	Shell Finish	Primary Material	Mounting Feature	Shell Size - Insert	Voltage Rating	Features	Shell Material	Contact Finish - Mating	Number of Positions	Fastening Type	Applications	Color	Orientation	Insert Material	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Contact Material - Plating [custom]	Includes	Mating Length/Depth	Mating Length/Depth	Termination Style	Actuator Type	Bushing Thread	Actuator Material	Actuator Length [x]	Illumination	Material	Accessory Type	For Use With/Related Products	Orientation	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. 125	Tin	Solder Eyelet(s)	Female	Shielded	Mono	3.55 mm	0.14 "	Silver	Phone Jack	Free Hanging (In-Line)	Copper Alloy	0.144 in	3.66 mm	2	2	Copper Alloy	Steel
Switchcraft Inc. B4M									Male Pins Receptacle								Brass	Nickel	Metal	Bulkhead - Rear Side Nut	XLR	125 VAC	Ground	Zinc	Silver	4	Latch Lock	Audio Instrumentation	Silver	Keyed	Polyester	10 A
Switchcraft Inc. 250		Solder	Male	Unshielded	Mono			Black Silver	Phone Plug	Free Hanging (In-Line)	Copper Alloy	0.25 in	6.35 mm	2	2	Plastic	Brass																0.297 in	7.54 mm	Nickel	1 Connector 1 Handle	1.2 in	30.5 mm
Switchcraft Inc. 12015X										Panel Mount Right Angle																													Solder Lug	Standard Round	15/32-32	Thermoplastic	22.22 mm	Non-Illuminated
Switchcraft Inc. EN3CAP																							Weathertight						Black																Thermoplastic Rubber	Cap (Cover) Sealing	EN3® Series Plug
Switchcraft Inc. 820		Screw	Female	Unshielded	Mono			Black	Phone Jack	Free Hanging (In-Line)	Copper Alloy	0.252 "	6.4 mm	2	2	Polyamide (PA) Nylon	Brass																0.26 in	6.6 mm	Nickel	1 Connector 1 Handle
Switchcraft Inc. 05GM3M		Solder		Shielded					Male Pins Plug	Free Hanging (In-Line)								Nickel	Metal		DIN		Backshell Cable Clamp Strain Relief	Zinc Die Cast			Push-Pull		Gray Silver		Plastic																	2	Plastic
Switchcraft Inc. TQG5F									Female Sockets Insert								Copper Alloy				Mini XLR	125 VAC	Insert Only Requires Shell		Silver						Thermoplastic	4 A																		85 °C	-55 °C
Switchcraft Inc. B3F									Female Sockets Plug								Phosphor Bronze		Metal	Bulkhead - Rear Side Nut	XLR	125 VAC	Ground	Stainless Steel	Silver		Latch Lock	Audio Instrumentation	Silver	Keyed	Polyester	15 A
Switchcraft Inc. C3M									Male Pins Receptacle								Brass	Nickel	Metal	Flange	XLR	125 VAC	Ground	Zinc	Silver		Latch Lock	Audio Instrumentation	Silver	Keyed	Polyester	15 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 27.25
