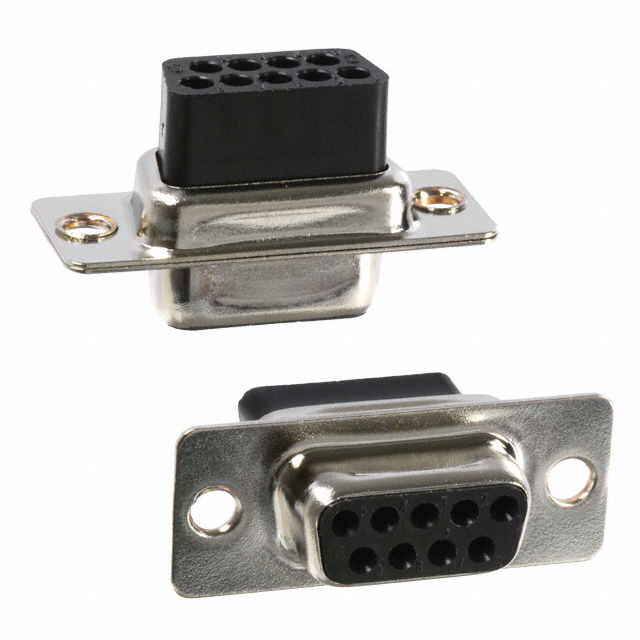

170-009-273L000 - 170-009-273L000

170-009-273L000

Active
MH Connectors

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, 170 SERIES, RECEPTACLE, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+2
170-009-273L000 - 170-009-273L000

170-009-273L000

Active
MH Connectors

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, 170 SERIES, RECEPTACLE, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

Specification170-009-273L000
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle for Female Contacts
Contact TypeSignal
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange FeatureHousing/Shell (Unthreaded)
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions9
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-50 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.60
10$ 1.22
25$ 1.10
40$ 1.04
80$ 0.96
230$ 0.86
440$ 0.80
945$ 0.74
2400$ 0.67
NewarkEach 1$ 1.20
10$ 1.02
100$ 0.92
250$ 0.84
500$ 0.77
1000$ 0.71

Description

General part information

170-009 Series

The 170-009-273L000 is a 9-way D-Sub Socket and made of steel with nickel-plated finish. It is suitable for use with Norcomp 170 Series D-Sub crimp socket contacts.
