170-009-273L010

Active

MH Connectors

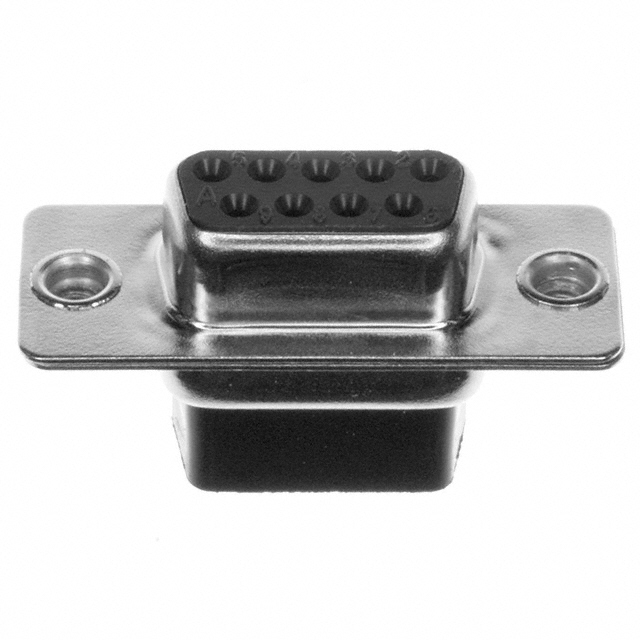

D SUB HOUSING, RCPT, 9POS, DE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

170-009-273L010

Active

MH Connectors

D SUB HOUSING, RCPT, 9POS, DE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-009-273L010

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Cable Side
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

170-009 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Rows	Shell Material, Finish	Note	Number of Positions	Connector Type	Connector Style	Dielectric Material	Contact Type	Color	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features
MH Connectors 170-009-273L010	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-272L010	-50 °C	125 °C	Cable Side	2		Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L030	-50 °C	125 °C	4-40	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents
MH Connectors 170-009-172L010	-50 °C	125 °C	Cable Side	2		Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-273L000	-50 °C	125 °C	Housing/Shell (Unthreaded)	2	Nickel Plated Steel	Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L020	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents
MH Connectors 170-009-272L000	-50 °C	125 °C	Housing/Shell (Unthreaded)	2		Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L010	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.97
		10	$ 2.27
		25	$ 2.04
		40	$ 1.94
		80	$ 1.79
		230	$ 1.60
		440	$ 1.50
		945	$ 1.38
		2400	$ 1.26
Newark	Each	1	$ 2.26
		10	$ 1.88
		50	$ 1.71
		100	$ 1.57
		250	$ 1.45
		500	$ 1.35
		1000	$ 1.26
		2500	$ 1.18

Description

General part information

170-009 Series

Receptacle for Female Contacts Housing D-Sub Connector 9 Position

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet
