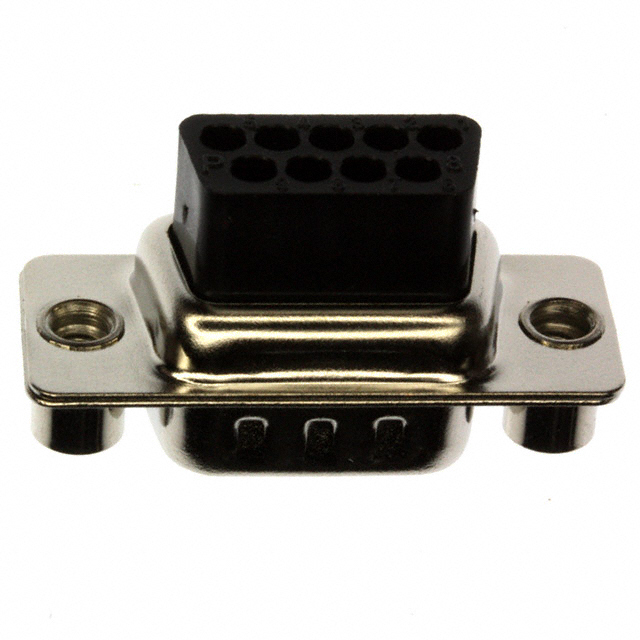

170-009-173L030

Active

MH Connectors

D SUB HOUSING, PLUG, 9POS, DE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet +1

170-009-173L030

Active

MH Connectors

D SUB HOUSING, PLUG, 9POS, DE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-009-173L030

Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	4-40
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

170-009 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Rows	Shell Material, Finish	Note	Number of Positions	Connector Type	Connector Style	Dielectric Material	Contact Type	Color	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features
MH Connectors 170-009-273L010	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-272L010	-50 °C	125 °C	Cable Side	2		Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L030	-50 °C	125 °C	4-40	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents
MH Connectors 170-009-172L010	-50 °C	125 °C	Cable Side	2		Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-273L000	-50 °C	125 °C	Housing/Shell (Unthreaded)	2	Nickel Plated Steel	Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L020	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents
MH Connectors 170-009-272L000	-50 °C	125 °C	Housing/Shell (Unthreaded)	2		Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L010	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.94
		10	$ 2.25
		25	$ 2.02
		40	$ 1.92
		80	$ 1.78
		230	$ 1.58
		440	$ 1.48
		945	$ 1.37
		2400	$ 1.25
Newark	Each	1	$ 2.69
		10	$ 1.86
		50	$ 1.69
		100	$ 1.55
		250	$ 1.44
		500	$ 1.40
		1000	$ 1.36
		2500	$ 1.24

Description

General part information

170-009 Series

Plug for Male Contacts Housing D-Sub Connector 9 Position

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet

Drawing EN

Datasheet
