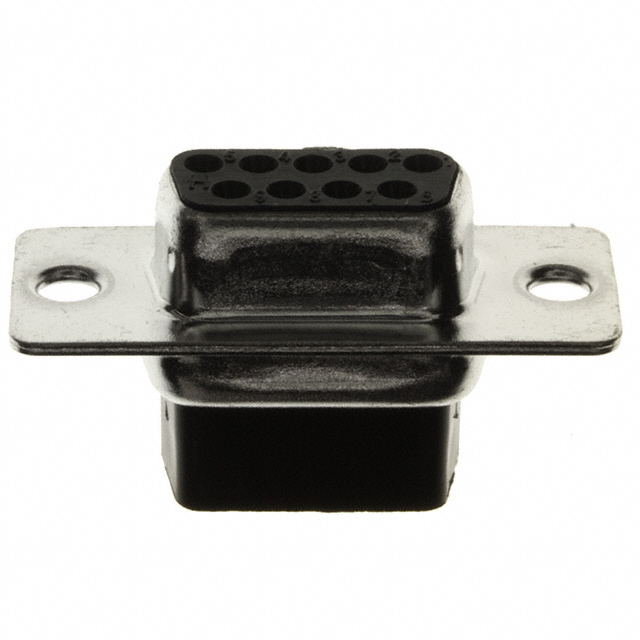

170-009-272L000

Obsolete

MH Connectors

CONN D-SUB HOUSING RCPT 9POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

170-009-272L000

Obsolete

MH Connectors

CONN D-SUB HOUSING RCPT 9POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-009-272L000

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

170-009 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Rows	Shell Material, Finish	Note	Number of Positions	Connector Type	Connector Style	Dielectric Material	Contact Type	Color	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features
MH Connectors 170-009-273L010	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-272L010	-50 °C	125 °C	Cable Side	2		Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L030	-50 °C	125 °C	4-40	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents
MH Connectors 170-009-172L010	-50 °C	125 °C	Cable Side	2		Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-273L000	-50 °C	125 °C	Housing/Shell (Unthreaded)	2	Nickel Plated Steel	Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L020	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents
MH Connectors 170-009-272L000	-50 °C	125 °C	Housing/Shell (Unthreaded)	2		Contacts Not Included	9	Receptacle for Female Contacts	D-Sub	Polybutylene Terephthalate (PBT)	Signal	Black	Free Hanging (In-Line)	DE E	1
MH Connectors 170-009-173L010	-50 °C	125 °C	Cable Side	2	Nickel Plated Steel	Contacts Not Included	9	Plug for Male Contacts	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Signal		Free Hanging (In-Line)	DE E	1	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

170-009 Series

Receptacle for Female Contacts Housing D-Sub Connector 9 Position
