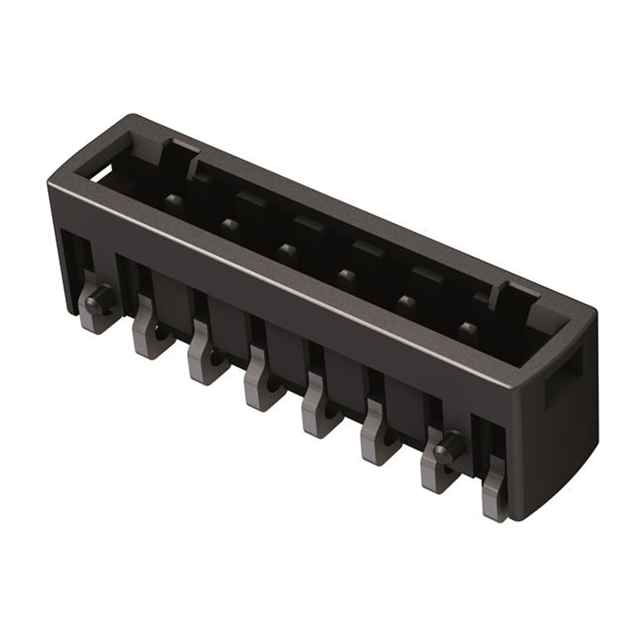

CONNECTOR: WIRE-BOARD; SOCKET; FEMALE; PIN: 8; HAR-FLEXICON®; 6A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 14110813001333 Prod Declaration Cert

14110813001333

Active

HARTING Technology Group

CONNECTOR: WIRE-BOARD; SOCKET; FEMALE; PIN: 8; HAR-FLEXICON®; 6A

Deep-Dive with AI

DocumentsDatasheet 14110813001333 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14110813001333

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	6 A
Features	Board Guide
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.254 in
Insulation Height	6.45 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Positions Per Level	8
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	160 V

har-flexicon-r Series

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Mating Finish	Mounting Type	Termination Style	Insulation Height	Insulation Height	Type	Contact Material	Number of Levels	Pitch [x]	Pitch [x]	Current - UL	Positions Per Level	Header Orientation	Number of Positions	Color	Voltage - UL	Material Flammability Rating	Housing Material	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Current	Contact Material - Plating	Mating Orientation	Voltage	Wire Strip Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
HARTING Technology Group 14110410002000	Board Guide Solder Retention	125 °C	-40 °C	Gold	Surface Mount	Solder	0.139 "	3.53 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.05 in	1.27 mm	2 A	4	90° Right Angle	4	Black	16 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled
HARTING Technology Group 14010313101000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		3			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14111213002000	Board Guide	125 °C	-40 °C	Tin	Surface Mount	Solder	0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.1 in	2.54 mm	6 A	12	90° Right Angle	12	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled
HARTING Technology Group 14010513102333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		5			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
HARTING Technology Group 14110813001333	Board Guide	125 °C	-40 °C	Tin	Surface Mount	Solder	0.254 in	6.45 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.1 in	2.54 mm	6 A	8	Vertical	8	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP)
HARTING Technology Group 14010313102000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		3			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
HARTING Technology Group 14010713101333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14010713101000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14310913101000	Latch Lock	125 °C	-40 °C	Tin	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	0.193 in	4.9 mm	Plug Female Sockets	Copper Alloy	1	0.1 in	2.54 mm	6 A	9		9	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled								6 mm	0.14 mm²	0.5 mm²	26 AWG	20 AWG
HARTING Technology Group 14010713102333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
