14111213002000

Active

HARTING Technology Group

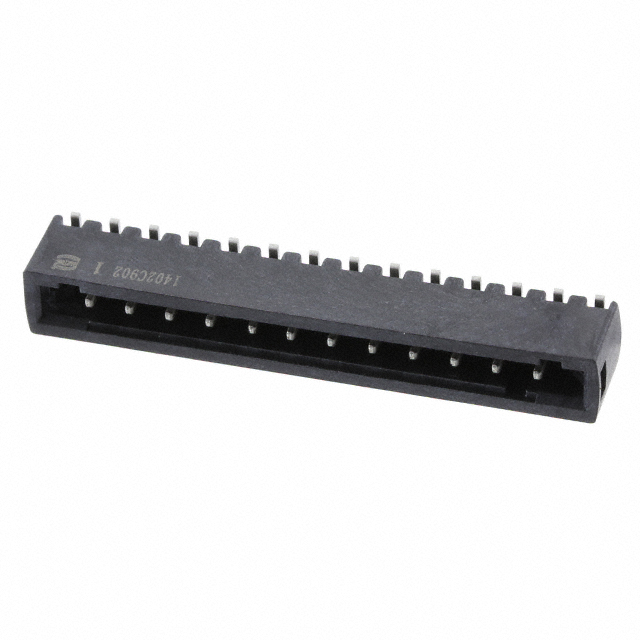

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 12 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 14111213002000 Prod Declaration Cert

14111213002000

Active

HARTING Technology Group

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 12 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsDatasheet 14111213002000 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14111213002000

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	6 A
Features	Board Guide
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.197 in
Insulation Height	5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	160 V

har-flexicon-r Series

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Mating Finish	Mounting Type	Termination Style	Insulation Height	Insulation Height	Type	Contact Material	Number of Levels	Pitch [x]	Pitch [x]	Current - UL	Positions Per Level	Header Orientation	Number of Positions	Color	Voltage - UL	Material Flammability Rating	Housing Material	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Current	Contact Material - Plating	Mating Orientation	Voltage	Wire Strip Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
HARTING Technology Group 14110410002000	Board Guide Solder Retention	125 °C	-40 °C	Gold	Surface Mount	Solder	0.139 "	3.53 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.05 in	1.27 mm	2 A	4	90° Right Angle	4	Black	16 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled
HARTING Technology Group 14010313101000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		3			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14111213002000	Board Guide	125 °C	-40 °C	Tin	Surface Mount	Solder	0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.1 in	2.54 mm	6 A	12	90° Right Angle	12	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled
HARTING Technology Group 14010513102333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		5			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
HARTING Technology Group 14110813001333	Board Guide	125 °C	-40 °C	Tin	Surface Mount	Solder	0.254 in	6.45 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.1 in	2.54 mm	6 A	8	Vertical	8	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP)
HARTING Technology Group 14010313102000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		3			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
HARTING Technology Group 14010713101333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14010713101000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14310913101000	Latch Lock	125 °C	-40 °C	Tin	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	0.193 in	4.9 mm	Plug Female Sockets	Copper Alloy	1	0.1 in	2.54 mm	6 A	9		9	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled								6 mm	0.14 mm²	0.5 mm²	26 AWG	20 AWG
HARTING Technology Group 14010713102333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.76
		10	$ 3.41
		100	$ 3.01
	Digi-Reel®	1	$ 3.76
		10	$ 3.41
		100	$ 3.01
	Tape & Reel (TR)	600	$ 1.86
Newark	Each (Supplied on Cut Tape)	250	$ 3.55

Description

General part information

har-flexicon-r Series

The har-Flexicon series Connector of PCBs shows a clear trend towards the miniaturization and reflow-soldering connection technology. This requires innovative answers regarding size, utilization, flexibility and handling of the components. The har-flexicon® product family has been designed for the toolless connection of single wires and the SMT/SMC-reflow-soldering process. The har-flexicon® ensures an efficient processing for both the device production and the device installation.
