14110410002000
ActiveHARTING Technology Group

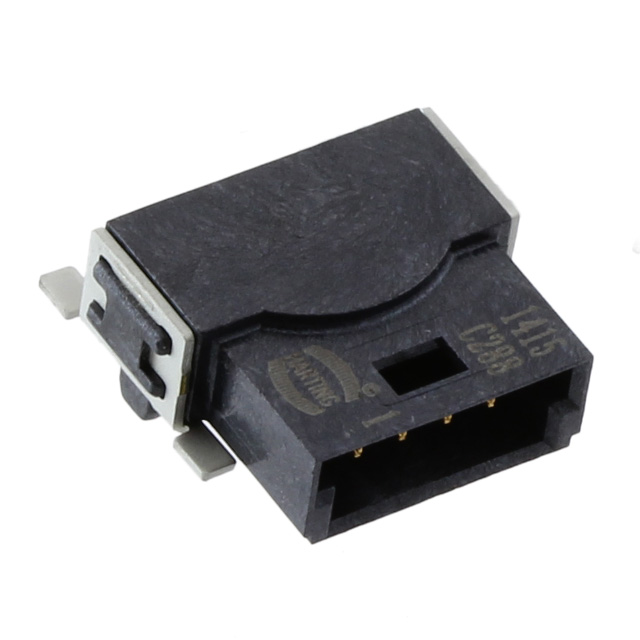

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 14110410002000 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Gold |
| Current - UL | 2 A |
| Features | Solder Retention, Board Guide |
| Header Orientation | 90°, Right Angle |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.139 " |
| Insulation Height | 3.53 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 16 V |
har-flexicon-r Series
| Part | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Mating Finish | Mounting Type | Termination Style | Insulation Height | Insulation Height | Type | Contact Material | Number of Levels | Pitch [x] | Pitch [x] | Current - UL | Positions Per Level | Header Orientation | Number of Positions | Color | Voltage - UL | Material Flammability Rating | Housing Material | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Current | Contact Material - Plating | Mating Orientation | Voltage | Wire Strip Length | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Board Guide Solder Retention | 125 °C | -40 °C | Gold | Surface Mount | Solder | 0.139 " | 3.53 mm | Header Male Pins Shrouded (4 Side) | Copper Alloy | 1 | 0.05 in | 1.27 mm | 2 A | 4 | 90° Right Angle | 4 | Black | 16 V | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | ||||||||||||
HARTING Technology Group | Board Guide Solder Retention | 125 °C | -40 °C | Surface Mount | 1 | 0.1 in | 2.54 mm | 3 | Black | Liquid Crystal Polymer (LCP) Glass Filled | Screwless - Spring Cage Tension Clamp | 20 AWG | 26 AWG | 6 A | Copper Alloy - Tin Plated | Vertical with Board | 160 V | ||||||||||||||||
HARTING Technology Group | Board Guide | 125 °C | -40 °C | Tin | Surface Mount | Solder | 0.197 in | 5 mm | Header Male Pins Shrouded (4 Side) | Copper Alloy | 1 | 0.1 in | 2.54 mm | 6 A | 12 | 90° Right Angle | 12 | Black | 160 V | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | ||||||||||||
HARTING Technology Group | Solder Retention | 125 °C | -40 °C | Surface Mount | 1 | 0.1 in | 2.54 mm | 5 | Black | Liquid Crystal Polymer (LCP) | Screwless - Spring Cage Tension Clamp | 20 AWG | 24 AWG | 6 A | Copper Alloy - Tin Plated | Horizontal with Board | 160 V | ||||||||||||||||
HARTING Technology Group | Board Guide | 125 °C | -40 °C | Tin | Surface Mount | Solder | 0.254 in | 6.45 mm | Header Male Pins Shrouded (4 Side) | Copper Alloy | 1 | 0.1 in | 2.54 mm | 6 A | 8 | Vertical | 8 | Black | 160 V | UL94 V-0 | Liquid Crystal Polymer (LCP) | ||||||||||||
HARTING Technology Group | Board Guide Solder Retention | 125 °C | -40 °C | Surface Mount | 1 | 0.1 in | 2.54 mm | 3 | Black | Liquid Crystal Polymer (LCP) Glass Filled | Screwless - Spring Cage Tension Clamp | 20 AWG | 26 AWG | 6 A | Copper Alloy - Tin Plated | Horizontal with Board | 160 V | ||||||||||||||||
HARTING Technology Group | Solder Retention | 125 °C | -40 °C | Surface Mount | 1 | 0.1 in | 2.54 mm | 7 | Black | Liquid Crystal Polymer (LCP) | Screwless - Spring Cage Tension Clamp | 20 AWG | 24 AWG | 6 A | Copper Alloy - Tin Plated | Vertical with Board | 160 V | ||||||||||||||||
HARTING Technology Group | Board Guide Solder Retention | 125 °C | -40 °C | Surface Mount | 1 | 0.1 in | 2.54 mm | 7 | Black | Liquid Crystal Polymer (LCP) Glass Filled | Screwless - Spring Cage Tension Clamp | 20 AWG | 26 AWG | 6 A | Copper Alloy - Tin Plated | Vertical with Board | 160 V | ||||||||||||||||
HARTING Technology Group | Latch Lock | 125 °C | -40 °C | Tin | Free Hanging (In-Line) | Screwless - Spring Cage Tension Clamp | 0.193 in | 4.9 mm | Plug Female Sockets | Copper Alloy | 1 | 0.1 in | 2.54 mm | 6 A | 9 | 9 | Black | 160 V | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | 6 mm | 0.14 mm² | 0.5 mm² | 26 AWG | 20 AWG | ||||||||
HARTING Technology Group | Solder Retention | 125 °C | -40 °C | Surface Mount | 1 | 0.1 in | 2.54 mm | 7 | Black | Liquid Crystal Polymer (LCP) | Screwless - Spring Cage Tension Clamp | 20 AWG | 24 AWG | 6 A | Copper Alloy - Tin Plated | Horizontal with Board | 160 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
har-flexicon-r Series
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.050" (1.27mm) 90°, Right Angle Surface Mount
