14010513102333

Active

HARTING Technology Group

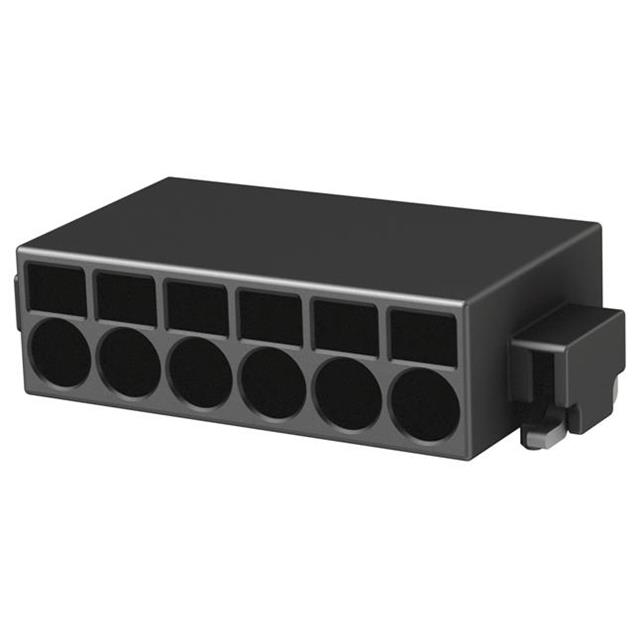

CONNECTOR: WIRE-BOARD; SOCKET; FEMALE; PIN: 5; HAR-FLEXICON®; 6A

Deep-Dive with AI

Documents14010513102333 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14010513102333

Color	Black
Contact Material - Plating	Copper Alloy - Tin Plated
Current	6 A
Features	Solder Retention
Housing Material	Liquid Crystal Polymer (LCP)
Mating Orientation	Horizontal with Board
Mounting Type	Surface Mount
Number of Levels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Positions Per Level	5
Voltage	160 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

har-flexicon-r Series

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Mating Finish	Mounting Type	Termination Style	Insulation Height	Insulation Height	Type	Contact Material	Number of Levels	Pitch [x]	Pitch [x]	Current - UL	Positions Per Level	Header Orientation	Number of Positions	Color	Voltage - UL	Material Flammability Rating	Housing Material	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Current	Contact Material - Plating	Mating Orientation	Voltage	Wire Strip Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
HARTING Technology Group 14110410002000	Board Guide Solder Retention	125 °C	-40 °C	Gold	Surface Mount	Solder	0.139 "	3.53 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.05 in	1.27 mm	2 A	4	90° Right Angle	4	Black	16 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled
HARTING Technology Group 14010313101000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		3			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14111213002000	Board Guide	125 °C	-40 °C	Tin	Surface Mount	Solder	0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.1 in	2.54 mm	6 A	12	90° Right Angle	12	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled
HARTING Technology Group 14010513102333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		5			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
HARTING Technology Group 14110813001333	Board Guide	125 °C	-40 °C	Tin	Surface Mount	Solder	0.254 in	6.45 mm	Header Male Pins Shrouded (4 Side)	Copper Alloy	1	0.1 in	2.54 mm	6 A	8	Vertical	8	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP)
HARTING Technology Group 14010313102000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		3			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V
HARTING Technology Group 14010713101333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14010713101000	Board Guide Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP) Glass Filled	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	6 A	Copper Alloy - Tin Plated	Vertical with Board	160 V
HARTING Technology Group 14310913101000	Latch Lock	125 °C	-40 °C	Tin	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	0.193 in	4.9 mm	Plug Female Sockets	Copper Alloy	1	0.1 in	2.54 mm	6 A	9		9	Black	160 V	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled								6 mm	0.14 mm²	0.5 mm²	26 AWG	20 AWG
HARTING Technology Group 14010713102333	Solder Retention	125 °C	-40 °C		Surface Mount						1	0.1 in	2.54 mm		7			Black			Liquid Crystal Polymer (LCP)	Screwless - Spring Cage Tension Clamp	20 AWG	24 AWG	6 A	Copper Alloy - Tin Plated	Horizontal with Board	160 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TME	N/A	1	$ 4.55
		3	$ 4.04
		5	$ 3.56

Description

General part information

har-flexicon-r Series

5 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Surface Mount
