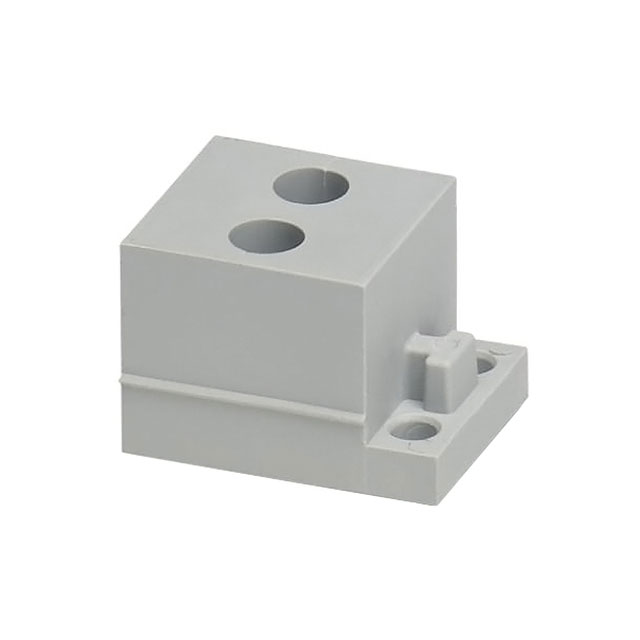

0801709
ActivePhoenix Contact
CABLE ACCESSORIES SLOTTED CABLE SLEEVE STYRENE-ETHYLENE/BUTYLENE-STYRENE GRAY
Deep-Dive with AI
Search across all available documentation for this part.
0801709
ActivePhoenix Contact
CABLE ACCESSORIES SLOTTED CABLE SLEEVE STYRENE-ETHYLENE/BUTYLENE-STYRENE GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801709 |
|---|---|
| Bushing, Grommet Type | Frame Grommet |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 0.236 in, 6 mm |
| Diameter - Inside [Min] [diameter] | 0.197 in, 5 mm |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch |
| For Use With/Related Products | 2 Cable Openings |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS |
| Material Flammability Rating | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.80 | |
| 10 | $ 2.55 | |||
Description
General part information
CES-STPG Series
Frame Grommet 0.197" ~ 0.236" (5.00mm ~ 6.00mm) Gray
Documents
Technical documentation and resources
No documents available
