0801683
ActivePhoenix Contact

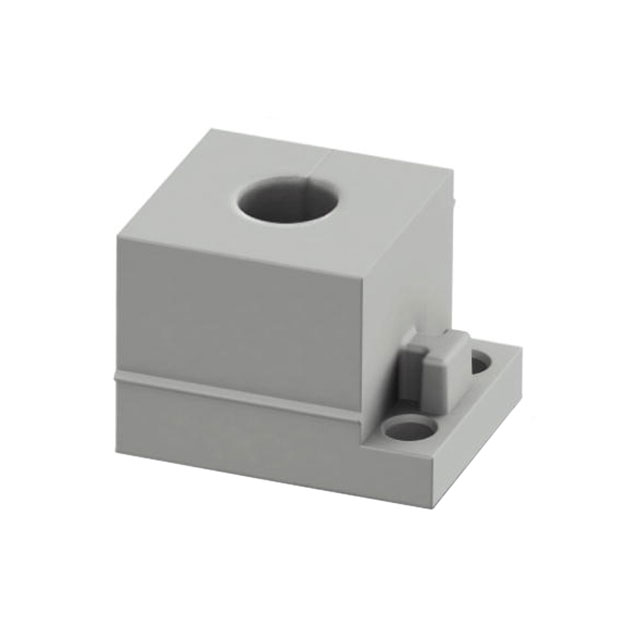

FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Search across all available documentation for this part.
0801683
ActivePhoenix Contact
FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801683 |
|---|---|
| Bushing, Grommet Type | Frame Grommet |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 0.433 " |
| Diameter - Inside [Max] [diameter] | 11 mm |
| Diameter - Inside [Min] [diameter] | 10 mm |
| Diameter - Inside [Min] [diameter] | 0.394 " |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch |
| For Use With/Related Products | Wires, Cable |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS |
| Material Flammability Rating | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.94 | |
| 10 | $ 2.61 | |||
| 50 | $ 2.38 | |||
| 100 | $ 2.28 | |||
| 250 | $ 2.09 | |||
| 500 | $ 1.96 | |||
| 1000 | $ 1.81 | |||
Description
General part information
CES-STPG Series
Frame Grommet 0.394" ~ 0.433" (10.00mm ~ 11.00mm) Gray
