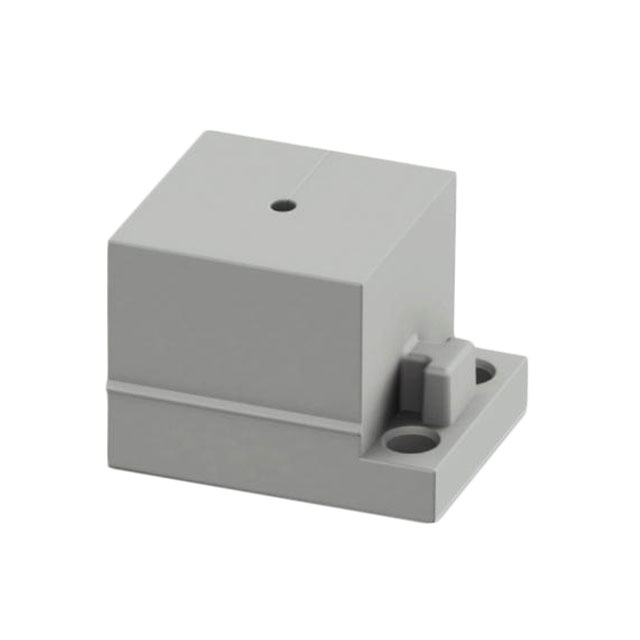

0801673

Active

Phoenix Contact

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0801673

Active

Phoenix Contact

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0801673

Bushing, Grommet Type	Frame Grommet
Color	Gray
Diameter - Inside [Max] [diameter]	3 mm
Diameter - Inside [Max] [diameter]	0.118 in
Diameter - Inside [Min] [diameter]	0.079 in
Diameter - Inside [Min] [diameter]	2 mm
Features	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch
For Use With/Related Products	Wires, Cable
Material	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Material Flammability Rating	UL94 V-0

CES-STPG Series

Part	Material	Color	Material Flammability Rating	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	For Use With/Related Products	Bushing, Grommet Type	Features	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Accessory Type
Phoenix Contact 0801674	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0	3 mm	4 mm	0.118 in	0.157 in	Cable Wires	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801677	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0	6 mm	7 mm			Cable Wires	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	0.236 "	0.276 "
Phoenix Contact 1410071	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0					2 ASI Cables Openings (L-L)	Frame Grommet	Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801679	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0	7 mm	8 mm	0.276 in	0.315 in	Cable Wires	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801715	Elastomer							PLUSCON CES Sealing Frames		Flame Retardant IP54			Hole Plug
Phoenix Contact 0801683	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0	10 mm	11 mm	0.394 "	0.433 "	Cable Wires	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801673	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0	2 mm	3 mm	0.079 in	0.118 in	Cable Wires	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801709	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0			0.197 in 5 mm	0.236 in 6 mm	2 Cable Openings	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801712	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0					1 ASI Cable Opening (R)	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801680	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	Gray	UL94 V-0	8 mm	9 mm	0.315 in	0.354 in	Cable Wires	Frame Grommet	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.86

Description

General part information

CES-STPG Series

Frame Grommet 0.079" ~ 0.118" (2.00mm ~ 3.00mm) Gray
