0801679
ActivePhoenix Contact

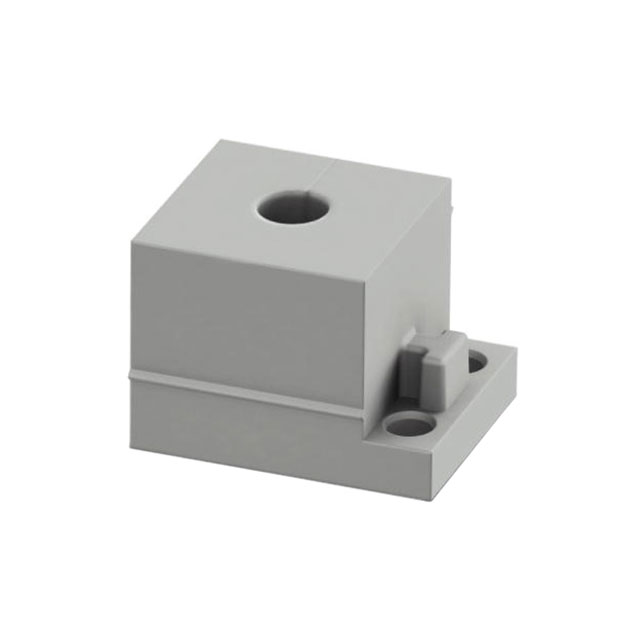

FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Search across all available documentation for this part.
0801679
ActivePhoenix Contact
FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801679 |
|---|---|
| Bushing, Grommet Type | Frame Grommet |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 8 mm |
| Diameter - Inside [Max] [diameter] | 0.315 in |
| Diameter - Inside [Min] [diameter] | 7 mm |
| Diameter - Inside [Min] [diameter] | 0.276 in |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch |
| For Use With/Related Products | Wires, Cable |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS |
| Material Flammability Rating | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.89 | |
Description
General part information
CES-STPG Series
Frame Grommet 0.276" ~ 0.315" (7.00mm ~ 8.00mm) Gray
Documents
Technical documentation and resources
No documents available
