V7-7B17D8

Active

Honeywell Sensing and Productivity Solutions

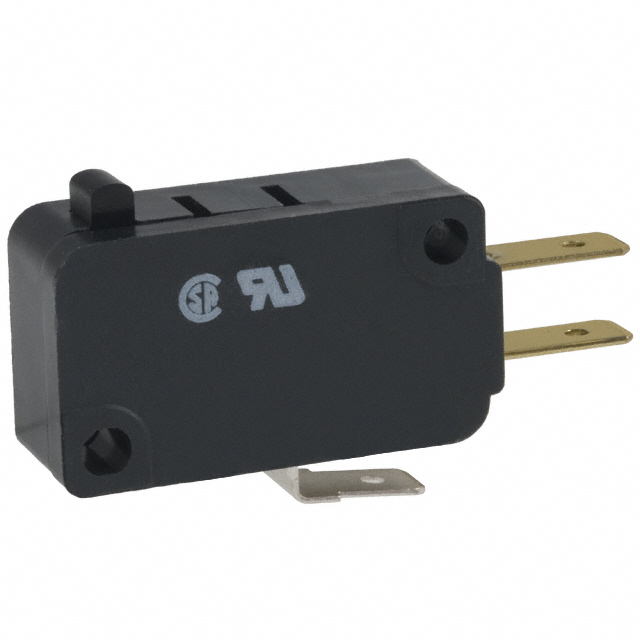

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog Datasheet

V7-7B17D8

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-7B17D8

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	11 A, 500 mA
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	227 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.04 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	57 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-7 Series

Part	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mechanical Life	Pretravel	Pretravel	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Position	Operating Position	Termination Style	Operating Force	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Electrical Life	Differential Travel	Differential Travel	Circuit	Pretravel
Honeywell Sensing and Productivity Solutions V7-7B19E9	57 gf	85 °C	-40 °C	1.27 mm	0.05 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.250" (6.3mm)	227 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	0.25 mm	0.01 in	SPDT
Honeywell Sensing and Productivity Solutions V7-7A19D8-374	28 gf	85 °C	-40 °C	1.2 mm	0.047 "	10000000 Cycles	0.081 in	2.05 mm	Chassis Mount	125 V	Formed Lever	0.846 in	21.5 mm	Quick Connect - 0.187" (4.7mm)	200 gf		On-Mom	5 A	100000 Cycles	0.47 mm	0.019 in	SPDT
Honeywell Sensing and Productivity Solutions V7-7B39E9-434	8 gf	85 °C	-40 °C	1.7 mm	0.065 in	10000000 Cycles	0.275 in	7 mm	Chassis Mount	125 V	Lever Simulated Roller	0.56 in	14.2 mm	Quick Connect - 0.250" (6.3mm)	63 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	1.5 mm	0.06 "	SPST-NC
Honeywell Sensing and Productivity Solutions V7-7H15D8-263-1	14 gf	85 °C	-40 °C	2.03 mm	0.08 in	10000000 Cycles		0.125 in	Chassis Mount	125 V	Lever Simulated Roller	0.73 in	18.5 mm	Quick Connect - 0.187" (4.7mm)	113 gf		On-Mom	5 A	100000 Cycles	1.3 mm	0.05 in	SPDT	3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8	57 gf	85 °C	-40 °C	1 mm	0.04 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	227 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	0.4 mm	0.016 "	SPDT
Honeywell Sensing and Productivity Solutions V7-7H25D8-263-1	14 gf	85 °C	-40 °C	2.03 mm	0.08 in	10000000 Cycles		0.125 in	Chassis Mount	125 V	Lever Simulated Roller	0.73 in	18.5 mm	Quick Connect - 0.187" (4.7mm)	113 gf		Off-Mom	5 A	100000 Cycles	1.3 mm	0.05 in	SPST-NO	3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B27D8	57 gf	85 °C	-40 °C	1.27 mm	0.05 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	227 gf	125 VDC	Off-Mom	11 A 500 mA	100000 Cycles	0.25 mm	0.01 in	SPST-NO
Honeywell Sensing and Productivity Solutions V7-7A23E9-000-1
Honeywell Sensing and Productivity Solutions V7-7C19D8-640	8.5 gf	85 °C	-40 °C	3.4 mm	0.134 in	10000000 Cycles	0.27 in	6.85 mm	Chassis Mount	125 V		0.602 "	15.3 mm	Quick Connect - 0.187" (4.7mm)	64 gf	125 VDC	On-Mom	15 A 500 mA	100000 Cycles	1.5 mm	0.06 "	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.53
		10	$ 3.75
		25	$ 3.48
		50	$ 3.29
		100	$ 3.11
		250	$ 2.89
		500	$ 2.73
		1000	$ 2.58

Description

General part information

V7-7 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

V7 Series Basic Switches Catalog

Datasheet
