V7-7H15D8-263-1

Active

Honeywell Sensing and Productivity Solutions

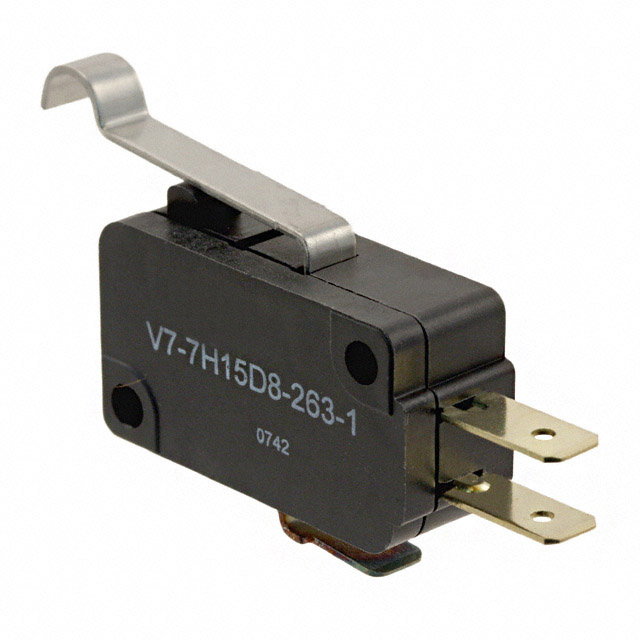

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog Datasheet

V7-7H15D8-263-1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-7H15D8-263-1

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.05 in
Differential Travel	1.3 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	113 gf
Operating Position	0.73 in
Operating Position	18.5 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	2.03 mm
Overtravel	0.08 in
Pretravel	3.2 mm
Pretravel	0.125 in
Release Force	14 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

V7-7 Series

Part	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mechanical Life	Pretravel	Pretravel	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Position	Operating Position	Termination Style	Operating Force	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Electrical Life	Differential Travel	Differential Travel	Circuit	Pretravel
Honeywell Sensing and Productivity Solutions V7-7B19E9	57 gf	85 °C	-40 °C	1.27 mm	0.05 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.250" (6.3mm)	227 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	0.25 mm	0.01 in	SPDT
Honeywell Sensing and Productivity Solutions V7-7A19D8-374	28 gf	85 °C	-40 °C	1.2 mm	0.047 "	10000000 Cycles	0.081 in	2.05 mm	Chassis Mount	125 V	Formed Lever	0.846 in	21.5 mm	Quick Connect - 0.187" (4.7mm)	200 gf		On-Mom	5 A	100000 Cycles	0.47 mm	0.019 in	SPDT
Honeywell Sensing and Productivity Solutions V7-7B39E9-434	8 gf	85 °C	-40 °C	1.7 mm	0.065 in	10000000 Cycles	0.275 in	7 mm	Chassis Mount	125 V	Lever Simulated Roller	0.56 in	14.2 mm	Quick Connect - 0.250" (6.3mm)	63 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	1.5 mm	0.06 "	SPST-NC
Honeywell Sensing and Productivity Solutions V7-7H15D8-263-1	14 gf	85 °C	-40 °C	2.03 mm	0.08 in	10000000 Cycles		0.125 in	Chassis Mount	125 V	Lever Simulated Roller	0.73 in	18.5 mm	Quick Connect - 0.187" (4.7mm)	113 gf		On-Mom	5 A	100000 Cycles	1.3 mm	0.05 in	SPDT	3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8	57 gf	85 °C	-40 °C	1 mm	0.04 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	227 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	0.4 mm	0.016 "	SPDT
Honeywell Sensing and Productivity Solutions V7-7H25D8-263-1	14 gf	85 °C	-40 °C	2.03 mm	0.08 in	10000000 Cycles		0.125 in	Chassis Mount	125 V	Lever Simulated Roller	0.73 in	18.5 mm	Quick Connect - 0.187" (4.7mm)	113 gf		Off-Mom	5 A	100000 Cycles	1.3 mm	0.05 in	SPST-NO	3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B27D8	57 gf	85 °C	-40 °C	1.27 mm	0.05 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	227 gf	125 VDC	Off-Mom	11 A 500 mA	100000 Cycles	0.25 mm	0.01 in	SPST-NO
Honeywell Sensing and Productivity Solutions V7-7A23E9-000-1
Honeywell Sensing and Productivity Solutions V7-7C19D8-640	8.5 gf	85 °C	-40 °C	3.4 mm	0.134 in	10000000 Cycles	0.27 in	6.85 mm	Chassis Mount	125 V		0.602 "	15.3 mm	Quick Connect - 0.187" (4.7mm)	64 gf	125 VDC	On-Mom	15 A 500 mA	100000 Cycles	1.5 mm	0.06 "	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.11
		10	$ 5.89
		25	$ 5.46
		50	$ 5.16
		100	$ 4.88
		250	$ 4.53
		500	$ 4.28
		1000	$ 4.21

Description

General part information

V7-7 Series

Switch SPDT Chassis Mount
