V7-7B19E9

Active

Honeywell Sensing and Productivity Solutions

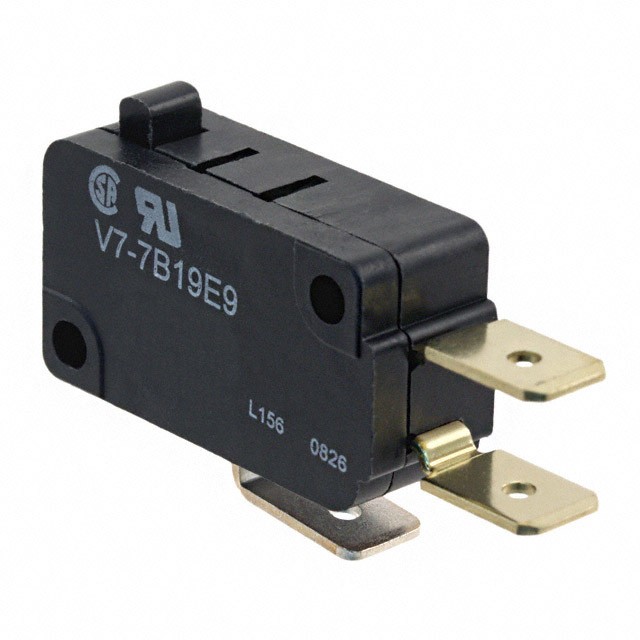

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet +1

V7-7B19E9

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-7B19E9

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	11 A, 500 mA
Differential Travel	0.25 mm
Differential Travel	0.01 in
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	227 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	1.27 mm
Overtravel	0.05 in
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	57 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-7 Series

Part	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mechanical Life	Pretravel	Pretravel	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Position	Operating Position	Termination Style	Operating Force	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Electrical Life	Differential Travel	Differential Travel	Circuit	Pretravel
Honeywell Sensing and Productivity Solutions V7-7B19E9	57 gf	85 °C	-40 °C	1.27 mm	0.05 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.250" (6.3mm)	227 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	0.25 mm	0.01 in	SPDT
Honeywell Sensing and Productivity Solutions V7-7A19D8-374	28 gf	85 °C	-40 °C	1.2 mm	0.047 "	10000000 Cycles	0.081 in	2.05 mm	Chassis Mount	125 V	Formed Lever	0.846 in	21.5 mm	Quick Connect - 0.187" (4.7mm)	200 gf		On-Mom	5 A	100000 Cycles	0.47 mm	0.019 in	SPDT
Honeywell Sensing and Productivity Solutions V7-7B39E9-434	8 gf	85 °C	-40 °C	1.7 mm	0.065 in	10000000 Cycles	0.275 in	7 mm	Chassis Mount	125 V	Lever Simulated Roller	0.56 in	14.2 mm	Quick Connect - 0.250" (6.3mm)	63 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	1.5 mm	0.06 "	SPST-NC
Honeywell Sensing and Productivity Solutions V7-7H15D8-263-1	14 gf	85 °C	-40 °C	2.03 mm	0.08 in	10000000 Cycles		0.125 in	Chassis Mount	125 V	Lever Simulated Roller	0.73 in	18.5 mm	Quick Connect - 0.187" (4.7mm)	113 gf		On-Mom	5 A	100000 Cycles	1.3 mm	0.05 in	SPDT	3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8	57 gf	85 °C	-40 °C	1 mm	0.04 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	227 gf	125 VDC	On-Mom	11 A 500 mA	100000 Cycles	0.4 mm	0.016 "	SPDT
Honeywell Sensing and Productivity Solutions V7-7H25D8-263-1	14 gf	85 °C	-40 °C	2.03 mm	0.08 in	10000000 Cycles		0.125 in	Chassis Mount	125 V	Lever Simulated Roller	0.73 in	18.5 mm	Quick Connect - 0.187" (4.7mm)	113 gf		Off-Mom	5 A	100000 Cycles	1.3 mm	0.05 in	SPST-NO	3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B27D8	57 gf	85 °C	-40 °C	1.27 mm	0.05 in	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	125 V	Round (Pin Plunger)	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	227 gf	125 VDC	Off-Mom	11 A 500 mA	100000 Cycles	0.25 mm	0.01 in	SPST-NO
Honeywell Sensing and Productivity Solutions V7-7A23E9-000-1
Honeywell Sensing and Productivity Solutions V7-7C19D8-640	8.5 gf	85 °C	-40 °C	3.4 mm	0.134 in	10000000 Cycles	0.27 in	6.85 mm	Chassis Mount	125 V		0.602 "	15.3 mm	Quick Connect - 0.187" (4.7mm)	64 gf	125 VDC	On-Mom	15 A 500 mA	100000 Cycles	1.5 mm	0.06 "	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.10
		10	$ 3.40
		25	$ 3.15
		50	$ 2.98

Description

General part information

V7-7 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Basic, Toggle, Rocker Switches Range Guide

Datasheet

V7 Series Basic Switches Catalog

Datasheet
