1860883

Active

Phoenix Contact

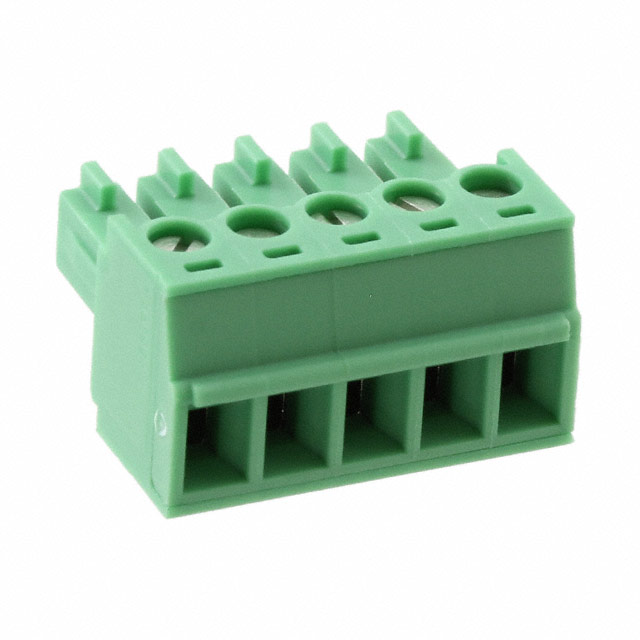

PLUGGABLE TERMINAL BLOCKS 5 POS 3.81MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1860883

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 5 POS 3.81MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1860883

Color	Green
Contact Mating Finish	Gold
Current - IEC	8 A
Current - UL	8 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437 in
Insulation Height	11.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm
Torque - Screw [Min]	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛ [Max]	1.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛
Wire Strip Length	7 mm

MC Series

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 28-16 AWG Screw

Part	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Termination Style	Features	Contact Mating Finish	Type	Voltage - UL	Pitch [x]	Pitch [x]	Current - IEC	Color	Positions Per Level	Number of Positions	Mounting Type	Material Flammability Rating	Screw Size	Current - UL	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Strip Length	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Header Orientation	Contact Tail Length	Contact Tail Length
Phoenix Contact 1765599	320 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	Strain Relief	Tin	Plug Female Sockets	300 V	3.5 mm	0.138 in	8 A	Green	8	8	Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm
Phoenix Contact 1916368	160 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG		Screw - Rising Cage Clamp		Tin	Plug Female Sockets	300 V	3.5 mm	0.138 in	8 A	Gray	5		Free Hanging (In-Line)		M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm
Phoenix Contact 1846328	320 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	Positions Stamped	Tin	Plug Female Sockets	300 V	3.81 mm	0.15 in	8 A	Green	5		Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm
Phoenix Contact 1729182	160 V			1	14 AWG	30 AWG		Screw - Rising Cage Clamp	Positions Stamped	Tin	Plug Female Sockets	300 V	3.5 mm	0.138 in	8 A		2	2	Free Hanging (In-Line)		M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm	0.14 mm˛	1.5 mm˛
Phoenix Contact 1900905	630 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	Mating Flange	Tin	Plug Female Sockets	300 V	5.08 mm	0.2 in	8 A	Green	4	4	Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm
Phoenix Contact 1860883	320 V			1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp		Gold	Plug Female Sockets	300 V	3.81 mm	0.15 in	8 A	Green	5		Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm	0.14 mm˛	1.5 mm˛
Phoenix Contact 1843949	250 V			1			Polybutylene Terephthalate (PBT)	Solder	Mating and Mounting Flange	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	8 A	Green	17		Through Hole	UL94 V-0		8 A						0.285 in	7.25 mm			90° Right Angle	3.4 mm	0.134 in
Phoenix Contact 1844249	250 V			1			Polybutylene Terephthalate (PBT)	Solder		Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	12 A	Green	5		Through Hole	UL94 V-0		8 A						0.285 in	7.25 mm			90° Right Angle	3.4 mm	0.134 in
Phoenix Contact 1850958	320 V			1	16 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Pressure Clip	Mating Flange	Tin	Plug Female Sockets	300 V	3.81 mm	0.15 in	8 A	Green	12	12	Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	9 mm	0.484 in	12.3 mm	0.14 mm˛	1.5 mm˛
Phoenix Contact 1839827	160 V			1				Solder		Tin	Header Male Pins Shrouded (4 Side)	300 V	3.81 mm	0.15 in	8 A	Black	14	14	Through Hole			8 A						0.285 in	7.25 mm			90° Right Angle	3.4 mm	0.134 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.06
Newark	Each	1	$ 8.79
		25	$ 8.11
		50	$ 7.36
		100	$ 6.87
		250	$ 6.44
		500	$ 5.72
Sager	N/A	50	$ 9.14
		100	$ 8.80
		200	$ 8.49
