1844249

Active

Phoenix Contact

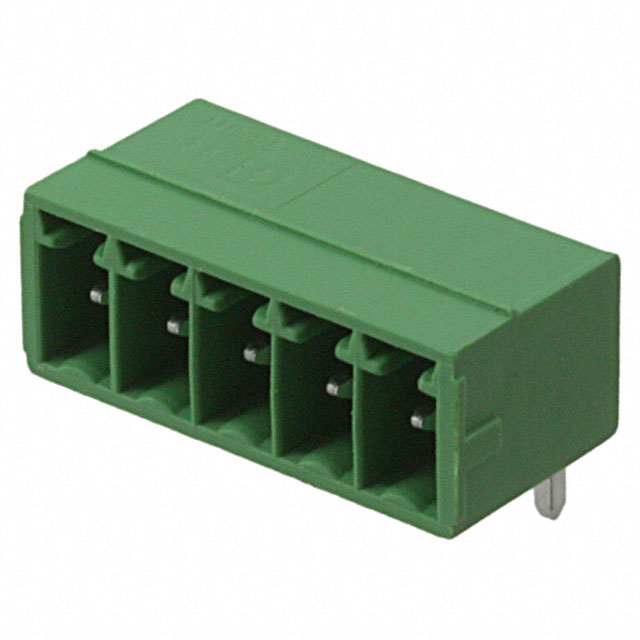

PLUGGABLE TERMINAL BLOCKS 5 POS 3.5MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1844249

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 5 POS 3.5MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1844249

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.4 mm
Contact Tail Length	0.134 in
Current - IEC	12 A
Current - UL	8 A
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.285 in
Insulation Height	7.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V
Voltage - UL	300 V

MC Series

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 28-16 AWG Screw

Part	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Termination Style	Features	Contact Mating Finish	Type	Voltage - UL	Pitch [x]	Pitch [x]	Current - IEC	Color	Positions Per Level	Number of Positions	Mounting Type	Material Flammability Rating	Screw Size	Current - UL	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Strip Length	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Header Orientation	Contact Tail Length	Contact Tail Length
Phoenix Contact 1765599	320 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	Strain Relief	Tin	Plug Female Sockets	300 V	3.5 mm	0.138 in	8 A	Green	8	8	Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm
Phoenix Contact 1916368	160 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG		Screw - Rising Cage Clamp		Tin	Plug Female Sockets	300 V	3.5 mm	0.138 in	8 A	Gray	5		Free Hanging (In-Line)		M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm
Phoenix Contact 1846328	320 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	Positions Stamped	Tin	Plug Female Sockets	300 V	3.81 mm	0.15 in	8 A	Green	5		Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm
Phoenix Contact 1729182	160 V			1	14 AWG	30 AWG		Screw - Rising Cage Clamp	Positions Stamped	Tin	Plug Female Sockets	300 V	3.5 mm	0.138 in	8 A		2	2	Free Hanging (In-Line)		M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm	0.14 mm˛	1.5 mm˛
Phoenix Contact 1900905	630 V	0.14 mm²	1.5 mm²	1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	Mating Flange	Tin	Plug Female Sockets	300 V	5.08 mm	0.2 in	8 A	Green	4	4	Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm
Phoenix Contact 1860883	320 V			1	14 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp		Gold	Plug Female Sockets	300 V	3.81 mm	0.15 in	8 A	Green	5		Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	7 mm	0.437 in	11.1 mm	0.14 mm˛	1.5 mm˛
Phoenix Contact 1843949	250 V			1			Polybutylene Terephthalate (PBT)	Solder	Mating and Mounting Flange	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	8 A	Green	17		Through Hole	UL94 V-0		8 A						0.285 in	7.25 mm			90° Right Angle	3.4 mm	0.134 in
Phoenix Contact 1844249	250 V			1			Polybutylene Terephthalate (PBT)	Solder		Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	12 A	Green	5		Through Hole	UL94 V-0		8 A						0.285 in	7.25 mm			90° Right Angle	3.4 mm	0.134 in
Phoenix Contact 1850958	320 V			1	16 AWG	30 AWG	Polyamide (PA) Nylon	Screw - Pressure Clip	Mating Flange	Tin	Plug Female Sockets	300 V	3.81 mm	0.15 in	8 A	Green	12	12	Free Hanging (In-Line)	UL94 V-0	M2	8 A	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	9 mm	0.484 in	12.3 mm	0.14 mm˛	1.5 mm˛
Phoenix Contact 1839827	160 V			1				Solder		Tin	Header Male Pins Shrouded (4 Side)	300 V	3.81 mm	0.15 in	8 A	Black	14	14	Through Hole			8 A						0.285 in	7.25 mm			90° Right Angle	3.4 mm	0.134 in
