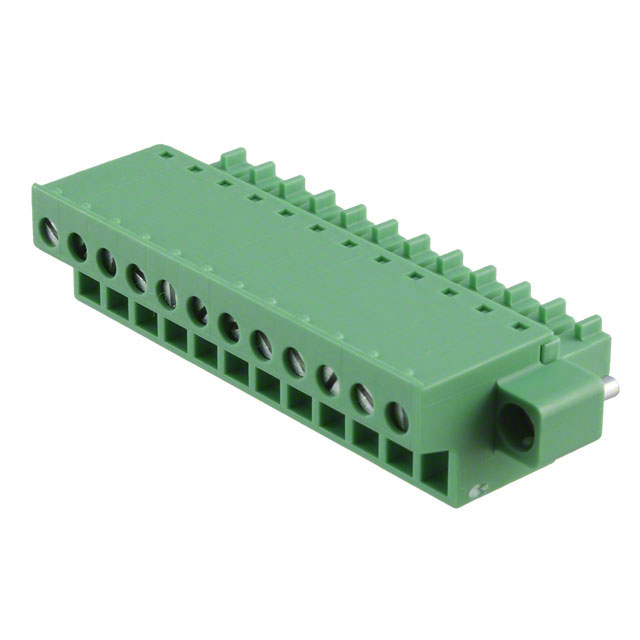

1850958 - 1850958

1850958

Active
Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 3.81MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
1850958 - 1850958

1850958

Active
Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 3.81MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification1850958
ColorGreen
Contact Mating FinishTin
Current - IEC8 A
Current - UL8 A
FeaturesMating Flange
Housing MaterialPolyamide (PA), Nylon
Insulation Height0.484 in
Insulation Height12.3 mm
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions12
Pitch [x]0.15 in
Pitch [x]3.81 mm
Positions Per Level12
Screw SizeM2
Termination StyleScrew - Pressure Clip
Torque - Screw [Max]2.2 Lb-In
Torque - Screw [Max]0.25 Nm
Torque - Screw [Min]0.22 Nm
Torque - Screw [Min]1.9 Lb-In
TypePlug, Female Sockets
Voltage - IEC320 V
Voltage - UL300 V
Wire Gauge or Range - AWG [Max]30 AWG
Wire Gauge or Range - AWG [Min]16 AWG
Wire Gauge or Range - mm˛ [Max]1.5 mm˛
Wire Gauge or Range - mm˛ [Min]0.14 mm˛
Wire Strip Length9 mm

MC Series

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 28-16 AWG Screw

PartVoltage - IECWire Gauge or Range - mm² [Min]Wire Gauge or Range - mm² [Max]Number of LevelsWire Gauge or Range - AWG [Min]Wire Gauge or Range - AWG [Max]Housing MaterialTermination StyleFeaturesContact Mating FinishTypeVoltage - ULPitch [x]Pitch [x]Current - IECColorPositions Per LevelNumber of PositionsMounting TypeMaterial Flammability RatingScrew SizeCurrent - ULTorque - Screw [Max]Torque - Screw [Max]Torque - Screw [Min]Torque - Screw [Min]Wire Strip LengthInsulation HeightInsulation HeightWire Gauge or Range - mm˛ [Min]Wire Gauge or Range - mm˛ [Max]Header OrientationContact Tail LengthContact Tail Length
Phoenix Contact
1765599
320 V
0.14 mm²
1.5 mm²
1
14 AWG
30 AWG
Polyamide (PA)
Nylon
Screw - Rising Cage Clamp
Strain Relief
Tin
Plug
Female Sockets
300 V
3.5 mm
0.138 in
8 A
Green
8
8
Free Hanging (In-Line)
UL94 V-0
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
7 mm
Phoenix Contact
1916368
160 V
0.14 mm²
1.5 mm²
1
14 AWG
30 AWG
Screw - Rising Cage Clamp
Tin
Plug
Female Sockets
300 V
3.5 mm
0.138 in
8 A
Gray
5
Free Hanging (In-Line)
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
7 mm
0.437 in
11.1 mm
Phoenix Contact
1846328
320 V
0.14 mm²
1.5 mm²
1
14 AWG
30 AWG
Polyamide (PA)
Nylon
Screw - Rising Cage Clamp
Positions Stamped
Tin
Plug
Female Sockets
300 V
3.81 mm
0.15 in
8 A
Green
5
Free Hanging (In-Line)
UL94 V-0
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
7 mm
0.437 in
11.1 mm
Phoenix Contact
1729182
160 V
1
14 AWG
30 AWG
Screw - Rising Cage Clamp
Positions Stamped
Tin
Plug
Female Sockets
300 V
3.5 mm
0.138 in
8 A
2
2
Free Hanging (In-Line)
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
7 mm
0.437 in
11.1 mm
0.14 mm˛
1.5 mm˛
Phoenix Contact
1900905
630 V
0.14 mm²
1.5 mm²
1
14 AWG
30 AWG
Polyamide (PA)
Nylon
Screw - Rising Cage Clamp
Mating Flange
Tin
Plug
Female Sockets
300 V
5.08 mm
0.2 in
8 A
Green
4
4
Free Hanging (In-Line)
UL94 V-0
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
7 mm
0.437 in
11.1 mm
Phoenix Contact
1860883
320 V
1
14 AWG
30 AWG
Polyamide (PA)
Nylon
Screw - Rising Cage Clamp
Gold
Plug
Female Sockets
300 V
3.81 mm
0.15 in
8 A
Green
5
Free Hanging (In-Line)
UL94 V-0
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
7 mm
0.437 in
11.1 mm
0.14 mm˛
1.5 mm˛
Phoenix Contact
1843949
250 V
1
Polybutylene Terephthalate (PBT)
Solder
Mating and Mounting Flange
Tin
Header
Male Pins
Shrouded (4 Side)
300 V
3.5 mm
0.138 in
8 A
Green
17
Through Hole
UL94 V-0
8 A
0.285 in
7.25 mm
90°
Right Angle
3.4 mm
0.134 in
Phoenix Contact
1844249
250 V
1
Polybutylene Terephthalate (PBT)
Solder
Tin
Header
Male Pins
Shrouded (4 Side)
300 V
3.5 mm
0.138 in
12 A
Green
5
Through Hole
UL94 V-0
8 A
0.285 in
7.25 mm
90°
Right Angle
3.4 mm
0.134 in
Phoenix Contact
1850958
320 V
1
16 AWG
30 AWG
Polyamide (PA)
Nylon
Screw - Pressure Clip
Mating Flange
Tin
Plug
Female Sockets
300 V
3.81 mm
0.15 in
8 A
Green
12
12
Free Hanging (In-Line)
UL94 V-0
M2
8 A
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
9 mm
0.484 in
12.3 mm
0.14 mm˛
1.5 mm˛
Phoenix Contact
1839827
160 V
1
Solder
Tin
Header
Male Pins
Shrouded (4 Side)
300 V
3.81 mm
0.15 in
8 A
Black
14
14
Through Hole
8 A
0.285 in
7.25 mm
90°
Right Angle
3.4 mm
0.134 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 23.78
10$ 23.13
50$ 21.62
100$ 19.89
250$ 19.52
SagerN/A 50$ 24.53
