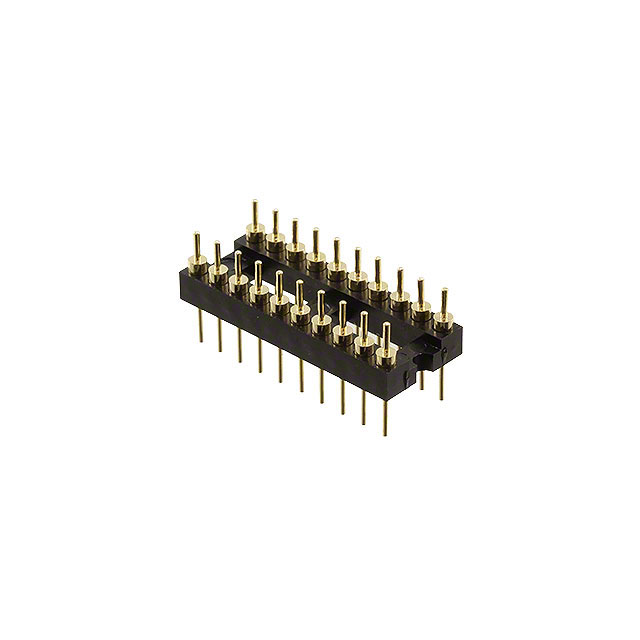

220-1-20-003
ActiveCnC Tech, LLC
CONN HDR DIP MALE PIN 20POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
220-1-20-003
ActiveCnC Tech, LLC
CONN HDR DIP MALE PIN 20POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 220-1-20-003 |
|---|---|
| Color | Black |
| Connector Type | DIP, DIL - Header |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.3 in |
| Row Spacing | 7.62 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.51 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.24 | |||
| 1000 | $ 1.16 | |||
| 2500 | $ 1.05 | |||
Description
General part information
220-1 Series
20 Position DIP, DIL - Header Connector Post Gold
Documents
Technical documentation and resources
