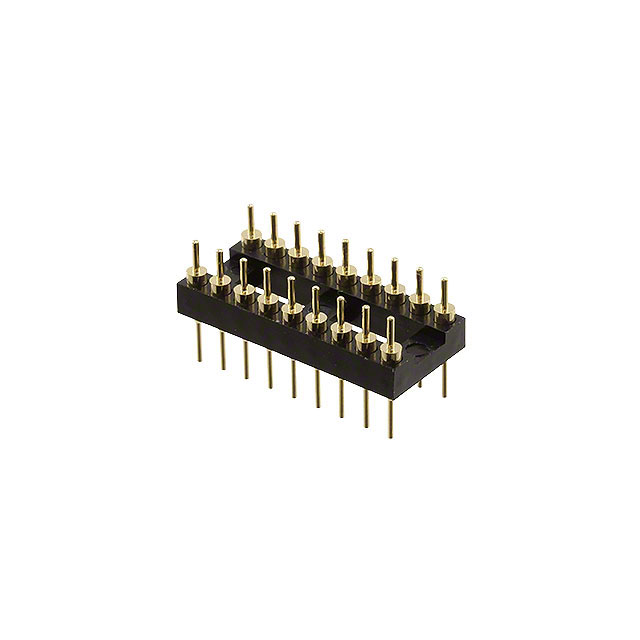

220-1-18-003
ActiveCnC Tech, LLC
CONN HDR DIP MALE PIN 18POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
220-1-18-003
ActiveCnC Tech, LLC
CONN HDR DIP MALE PIN 18POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 220-1-18-003 |
|---|---|
| Color | Black |
| Connector Type | DIP, DIL - Header |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.3 in |
| Row Spacing | 7.62 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.91 | |
| 10 | $ 1.66 | |||
| 26 | $ 1.59 | |||
| 52 | $ 1.56 | |||
| 104 | $ 1.48 | |||
| 260 | $ 1.34 | |||
| 520 | $ 1.24 | |||
| 1014 | $ 1.06 | |||
| 2522 | $ 0.99 | |||
Description
General part information
220-1 Series
18 Position DIP, DIL - Header Connector Post Gold
