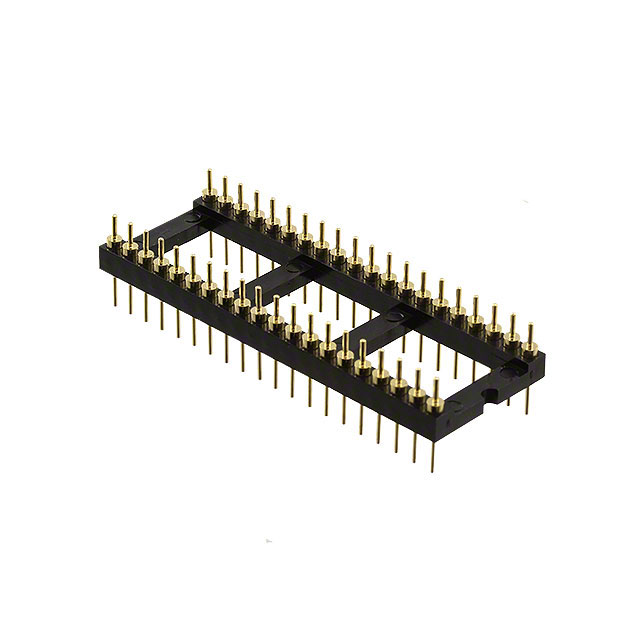

220-1-40-006
ActiveCnC Tech, LLC
CONN HDR DIP MALE PIN 40POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 220-1-40-006 |
|---|---|
| Color | Black |
| Connector Type | DIP, DIL - Header |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.6 in |
| Row Spacing | 15.24 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.71 | |
| 12 | $ 3.37 | |||
| 36 | $ 3.19 | |||
| 60 | $ 3.12 | |||
| 108 | $ 2.97 | |||
| 252 | $ 2.60 | |||
| 504 | $ 2.52 | |||
| 1008 | $ 2.15 | |||
| 2508 | $ 2.00 | |||
Description
General part information
220-1 Series
40 Position DIP, DIL - Header Connector Post Gold
