220-1-06-003

Active

CnC Tech, LLC

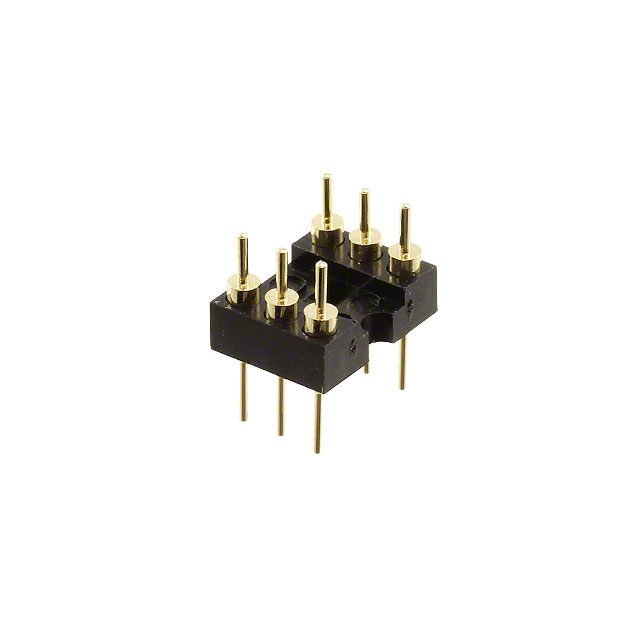

CONN HDR DIP MALE PIN 6POS GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HDR DIP MALE PIN 6POS GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Color	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Number of Rows	Connector Type	Mounting Type	Termination
CnC Tech, LLC 220-1-06-003	Black	6	Gold	2.54 mm	0.1 in	0.3 in	7.62 mm	2	DIL - Header DIP	Through Hole	Solder
CnC Tech, LLC 220-1-40-006	Black	40	Gold	2.54 mm	0.1 in	0.6 in	15.24 mm	2	DIL - Header DIP	Through Hole	Solder
CnC Tech, LLC 220-1-32-006	Black		Gold	2.54 mm	0.1 in	0.6 in	15.24 mm	2	DIL - Header DIP	Through Hole	Solder
CnC Tech, LLC 220-1-20-003	Black	20	Gold	2.54 mm	0.1 in	0.3 in	7.62 mm	2	DIL - Header DIP	Through Hole	Solder
CnC Tech, LLC 220-1-18-003	Black	18	Gold	2.54 mm	0.1 in	0.3 in	7.62 mm	2	DIL - Header DIP	Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	8000	$ 0.31

General part information

6 Position DIP, DIL - Header Connector Post Gold
