ATS-X50250G-C1-R0

Active

Advanced Thermal Solutions Inc.

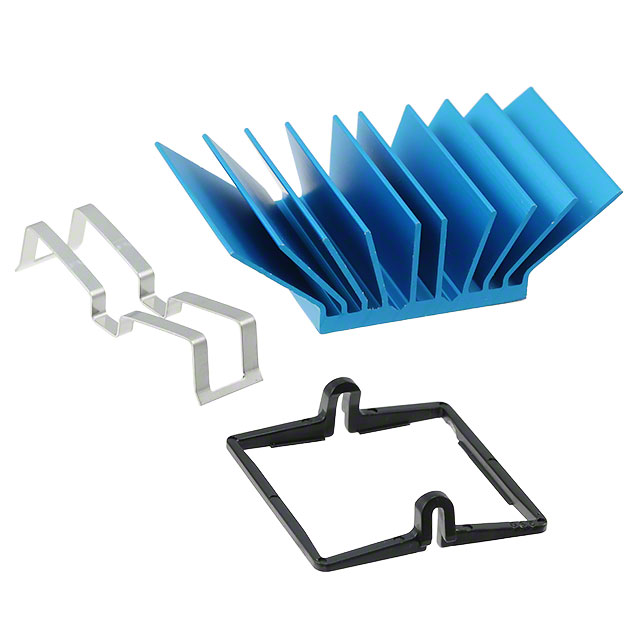

HEAT SINKS MAXIFLOW SUPERGRIP BGA HEAT SINK, T766, BLUE-ANODIZED, 24.25X24.25X12.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet superGrip Clearance Guidelines +1

ATS-X50250G-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW SUPERGRIP BGA HEAT SINK, T766, BLUE-ANODIZED, 24.25X24.25X12.5MM

Deep-Dive with AI

DocumentsDatasheet superGrip Clearance Guidelines +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-X50250G-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height	12.5 mm
Fin Height	0.492 in
Length	25 mm
Length	0.984 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	5.2 °C/W
Type	Top Mount
Width	25 mm
Width [x]	0.984 in

BGA Low Profile Series

Heat Sinks maxiFLOW BGA Heat Sink w/maxiGRIP Attachment, T412, 45x45x14.5mm, 69.6mm Fin Tip

...

Part	Length	Length	Shape	Attachment Method	Material	Material Finish	Type	Fin Height	Fin Height	Width [x]	Width [x]	Package Cooled	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Width [y]	Width [y]	Width	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise	Width
Advanced Thermal Solutions Inc. ATS-X53330G-C1-R0	32.99 mm	1.299 in	Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	12.5 mm	0.492 in	32.99 mm	1.299 in	BGA	5.8 °C/W
Advanced Thermal Solutions Inc. ATS-X50230G-C1-R0			Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	12.5 mm	0.492 in			BGA	6.7 °C/W 200 LFM	23 mm	0.9 in	0.906 in	23.01 mm
Advanced Thermal Solutions Inc. ATS-X53350P-C1-R0			Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount				1.378 in	BGA	3.8 °C/W 200 LFM	35 mm	1.378 in			35 mm	0.689 in	17.5 mm
Advanced Thermal Solutions Inc. ATS-X53170R-C1-R0
Advanced Thermal Solutions Inc. ATS-X50250G-C1-R0	25 mm	0.984 in	Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	12.5 mm	0.492 in		0.984 in	BGA	5.2 °C/W					25 mm
Advanced Thermal Solutions Inc. ATS-X51270K-C1-R0	27 mm	1.063 in	Angled Fins Square	Clip Thermal Material	Aluminum	Black Anodized	Top Mount					BGA	4.8 °C/W 200 LFM			1.063 in	27 mm		0.571 in	14.5 mm
Advanced Thermal Solutions Inc. ATS-54190K-C1-R0	19 mm	0.748 in	Fins Square	Thermal Tape Adhesive (Included)	Aluminum	Black Anodized	Top Mount					BGA	12 °C/W 200 LFM			0.748 in	19 mm		0.571 in	14.5 mm	0.3 W 20 °C
Advanced Thermal Solutions Inc. ATS-51325K-C1-R0	32.51 mm	1.28 in	Angled Fins Square	Clip Thermal Material	Aluminum	Black Anodized	Top Mount					BGA	3.5 °C/W			1.28 in	32.51 mm		0.571 in	14.5 mm
Advanced Thermal Solutions Inc. ATS-X50300P-C1-R0			Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount					BGA	3.4 °C/W	30 mm	1.181 in			30 mm	0.689 in	17.5 mm		1.181 in
Advanced Thermal Solutions Inc. ATS-X51270R-C1-R0	27 mm	1.063 in	Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	19.5 mm	0.768 in			BGA	3.6 °C/W 200 LFM			1.063 in	27 mm
