ATS-51325K-C1-R0

Active

Advanced Thermal Solutions Inc.

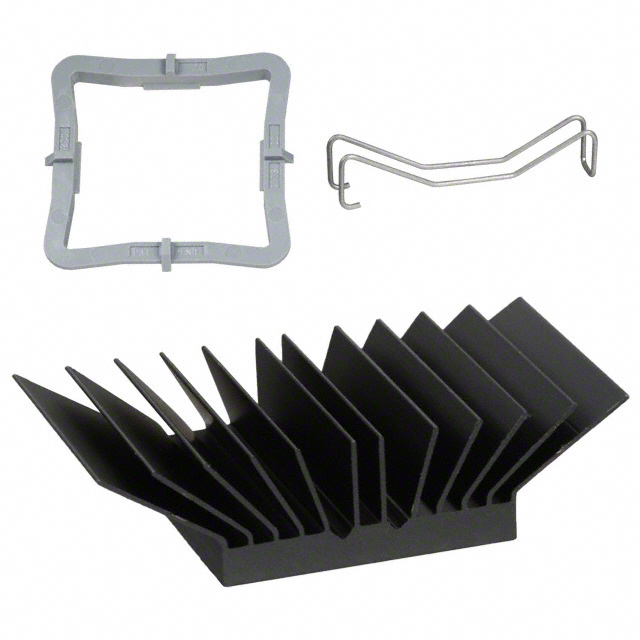

HEAT SINKS MAXIFLOW BGA HEAT SINK W/MAXIGRIP ATTACHMENT, 32.5X32.5X14.5MM, 57.5MM FIN TIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet maxiGRIP Installation Guide +2

ATS-51325K-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW BGA HEAT SINK W/MAXIGRIP ATTACHMENT, 32.5X32.5X14.5MM, 57.5MM FIN TIP

Deep-Dive with AI

DocumentsDatasheet maxiGRIP Installation Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-51325K-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height [z]	0.571 in
Fin Height [z]	14.5 mm
Length	32.51 mm
Length	1.28 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	3.5 °C/W
Type	Top Mount
Width [y]	1.28 in
Width [y]	32.51 mm

BGA Low Profile Series

Heat Sinks maxiFLOW BGA Heat Sink w/maxiGRIP Attachment, T412, 45x45x14.5mm, 69.6mm Fin Tip

...

Part	Length	Length	Shape	Attachment Method	Material	Material Finish	Type	Fin Height	Fin Height	Width [x]	Width [x]	Package Cooled	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Width [y]	Width [y]	Width	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise	Width
Advanced Thermal Solutions Inc. ATS-X53330G-C1-R0	32.99 mm	1.299 in	Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	12.5 mm	0.492 in	32.99 mm	1.299 in	BGA	5.8 °C/W
Advanced Thermal Solutions Inc. ATS-X50230G-C1-R0			Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	12.5 mm	0.492 in			BGA	6.7 °C/W 200 LFM	23 mm	0.9 in	0.906 in	23.01 mm
Advanced Thermal Solutions Inc. ATS-X53350P-C1-R0			Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount				1.378 in	BGA	3.8 °C/W 200 LFM	35 mm	1.378 in			35 mm	0.689 in	17.5 mm
Advanced Thermal Solutions Inc. ATS-X53170R-C1-R0
Advanced Thermal Solutions Inc. ATS-X50250G-C1-R0	25 mm	0.984 in	Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	12.5 mm	0.492 in		0.984 in	BGA	5.2 °C/W					25 mm
Advanced Thermal Solutions Inc. ATS-X51270K-C1-R0	27 mm	1.063 in	Angled Fins Square	Clip Thermal Material	Aluminum	Black Anodized	Top Mount					BGA	4.8 °C/W 200 LFM			1.063 in	27 mm		0.571 in	14.5 mm
Advanced Thermal Solutions Inc. ATS-54190K-C1-R0	19 mm	0.748 in	Fins Square	Thermal Tape Adhesive (Included)	Aluminum	Black Anodized	Top Mount					BGA	12 °C/W 200 LFM			0.748 in	19 mm		0.571 in	14.5 mm	0.3 W 20 °C
Advanced Thermal Solutions Inc. ATS-51325K-C1-R0	32.51 mm	1.28 in	Angled Fins Square	Clip Thermal Material	Aluminum	Black Anodized	Top Mount					BGA	3.5 °C/W			1.28 in	32.51 mm		0.571 in	14.5 mm
Advanced Thermal Solutions Inc. ATS-X50300P-C1-R0			Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount					BGA	3.4 °C/W	30 mm	1.181 in			30 mm	0.689 in	17.5 mm		1.181 in
Advanced Thermal Solutions Inc. ATS-X51270R-C1-R0	27 mm	1.063 in	Angled Fins Square	Clip Thermal Material	Aluminum	Blue Anodized	Top Mount	19.5 mm	0.768 in			BGA	3.6 °C/W 200 LFM			1.063 in	27 mm
