ATS-54190K-C1-R0

Active

Advanced Thermal Solutions Inc.

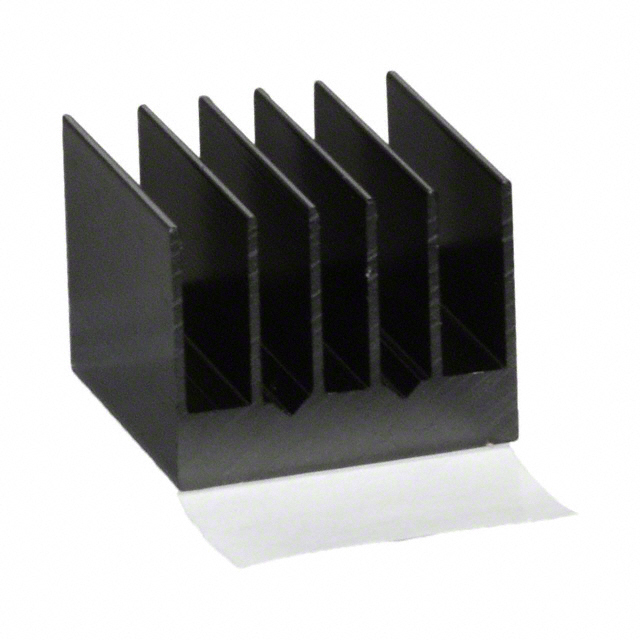

HEAT SINKS BGA HEAT SINK, SQUARE FIN, 2 SIDE THERMAL TAPE, BLACK, 19X19X14.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-54190K-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, SQUARE FIN, 2 SIDE THERMAL TAPE, BLACK, 19X19X14.5MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-54190K-C1-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	0.571 in
Fin Height [z]	14.5 mm
Length	0.748 in
Length	19 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Power Dissipation @ Temperature Rise	0.3 W, 20 °C
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 12 °C/W
Type	Top Mount
Width [y]	0.748 in
Width [y]	19 mm

BGA with Thermal Tap Series

Heat Sinks Extrusion, 2 Side Thermal Tape, Black Anodize, T412, 19x19x24.5mm

...

Part	Length	Length	Type	Material Finish	Width [y]	Width [y]	Attachment Method	Material	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Forced Air Flow	Shape	Package Cooled	Width [x]	Width [x]	Power Dissipation @ Temperature Rise	Length [x]	Length [x]	Fin Height	Fin Height	Width	Width
Advanced Thermal Solutions Inc. ATS-52190B-C1-R0	0.748 in	19 mm	Top Mount	Blue Anodized	0.748 in	19 mm	Thermal Tape Adhesive (Included)	Aluminum	0.295 in	7.5 mm	16.5 °C/W 200 LFM	Angled Fins Square	BGA
Advanced Thermal Solutions Inc. ATS-52400P-C1-R0			Top Mount	Blue Anodized			Thermal Tape Adhesive (Included)	Aluminum	0.689 in	17.5 mm	2 °C/W 200 LFM	Angled Fins Square	BGA	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-54210W-C0-R0	0.827 in	21 mm	Top Mount	Black Anodized	0.827 in	21 mm	Thermal Tape Adhesive (Not Included)	Aluminum	0.965 in	24.5 mm	6 °C/W 200 LFM	Fins Square	BGA			0.3 W 20 °C
Advanced Thermal Solutions Inc. ATS-52190P-C0-R0	0.748 in	19 mm	Top Mount	Blue Anodized	0.748 in	19 mm	Thermal Tape Adhesive (Not Included)	Aluminum	0.689 in	17.5 mm	7.7 °C/W 200 LFM	Angled Fins Square	BGA
Advanced Thermal Solutions Inc. ATS-54375K-C1-R0	1.476 in	37.5 mm	Top Mount	Black Anodized	1.476 in	37.5 mm	Thermal Tape Adhesive (Included)	Aluminum	0.571 in	14.5 mm	5 °C/W 200 LFM	Fins Square	BGA
Advanced Thermal Solutions Inc. ATS-52350G-C1-R0			Top Mount	Blue Anodized			Thermal Tape Adhesive (Included)	Aluminum			3 °C/W 200 LFM	Angled Fins Square	BGA	1.378 in			1.378 in	35 mm	12.5 mm	0.492 in	35 mm
Advanced Thermal Solutions Inc. ATS-54350K-C0-R0			Top Mount	Black Anodized			Thermal Tape Adhesive (Not Included)	Aluminum	0.571 in	14.5 mm	5.4 °C/W 200 LFM	Fins Square	BGA	1.378 in			1.378 in	35 mm			35 mm
Advanced Thermal Solutions Inc. ATS-54190K-C1-R0	0.748 in	19 mm	Top Mount	Black Anodized	0.748 in	19 mm	Thermal Tape Adhesive (Included)	Aluminum	0.571 in	14.5 mm	12 °C/W 200 LFM	Fins Square	BGA			0.3 W 20 °C
Advanced Thermal Solutions Inc. ATS-54300R-C1-R0			Top Mount	Black Anodized			Thermal Tape Adhesive (Included)	Aluminum			4.8 °C/W 200 LFM	Fins Square	BGA				1.181 in	30 mm	19.5 mm	0.768 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-54270D-C1-R0	1.063 in	27 mm	Top Mount	Black Anodized	1.063 in	27 mm	Thermal Tape Adhesive (Included)	Aluminum			14.1 °C/W 200 LFM	Fins Square	BGA						9.5 mm	0.374 in
