19628061290

Active

HARTING Technology Group

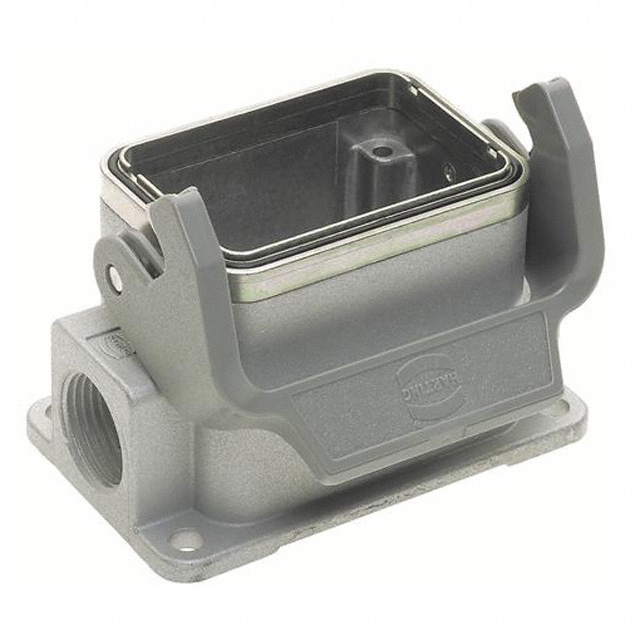

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 6B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 6B

Technical Specifications

Parameters and characteristics for this part

Specification	19628061290

Connector Type	Base - Box Mount
Features	Feed Through
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Style	Side Entry
Thread Size	M20

Part	Ingress Protection	Lock Location	Connector Type	Style	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Material	Features	Housing Finish
HARTING Technology Group 19628061121	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	Hood - Panel Mount	Top Entry	3.165 in	80.4 mm	4.094 "	2.776 "	70.5 mm	104 mm	6B	125 °C	-40 °C	M25	Aluminum Die Cast
HARTING Technology Group 19628061290	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Base - Box Mount	Side Entry							6B	125 °C	-40 °C	M20	Aluminum Die Cast	Feed Through	EMC Coating
HARTING Technology Group 19628061540	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Hood	Side Entry	1.976 "	50.2 mm	2.362 in	1.693 in	43 mm	60 mm	6B	125 °C	-40 °C	M20	Aluminum Die Cast		EMC Coating
HARTING Technology Group 19628061541	IP65 IP66	Locking Clip (1) on Base Bottom	Hood	Side Entry							6B	125 °C	-40 °C	M25	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M20 6B IP65 - Dust Tight, Water Resistant
