19628061541

Active

HARTING Technology Group

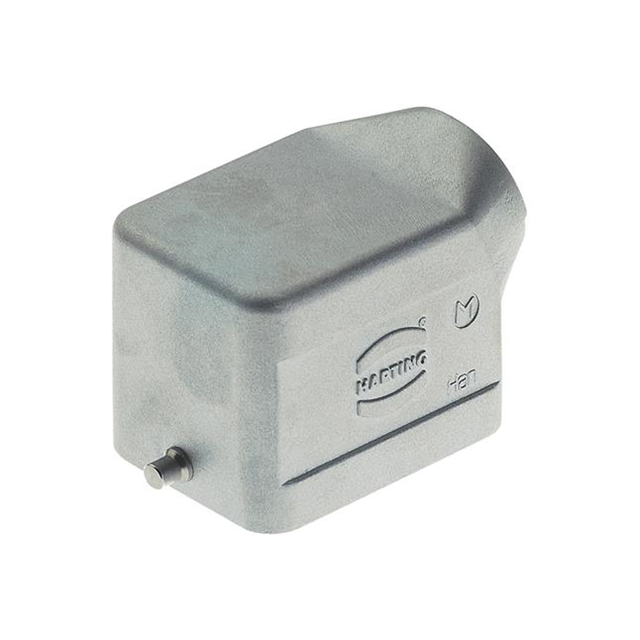

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; IP65; ANGLED

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; IP65; ANGLED

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Lock Location	Connector Type	Style	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Material	Features	Housing Finish
HARTING Technology Group 19628061121	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	Hood - Panel Mount	Top Entry	3.165 in	80.4 mm	4.094 "	2.776 "	70.5 mm	104 mm	6B	125 °C	-40 °C	M25	Aluminum Die Cast
HARTING Technology Group 19628061290	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Base - Box Mount	Side Entry							6B	125 °C	-40 °C	M20	Aluminum Die Cast	Feed Through	EMC Coating
HARTING Technology Group 19628061540	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Hood	Side Entry	1.976 "	50.2 mm	2.362 in	1.693 in	43 mm	60 mm	6B	125 °C	-40 °C	M20	Aluminum Die Cast		EMC Coating
HARTING Technology Group 19628061541	IP65 IP66	Locking Clip (1) on Base Bottom	Hood	Side Entry							6B	125 °C	-40 °C	M25	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 6B IP65/IP66 - Dust Tight, Water Resistant
