19628061540
ActiveHARTING Technology Group

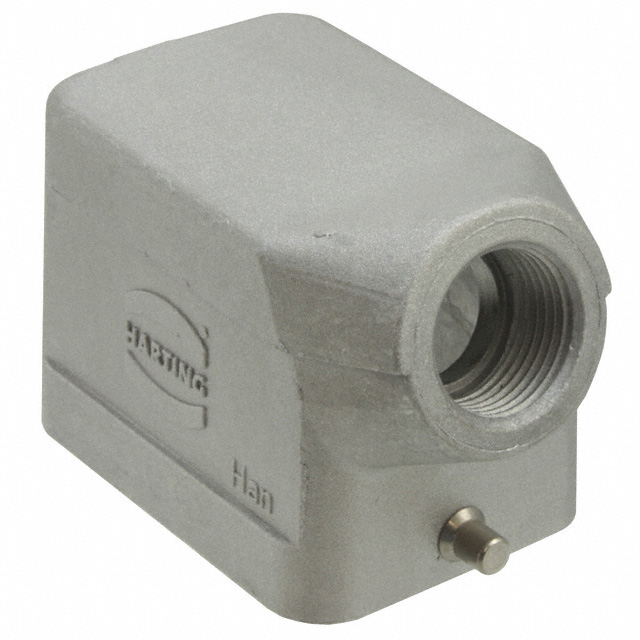

CONN HOOD SIDE ENTRY SZ6B M20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19628061540 |
|---|---|
| Connector Type | Hood |
| Housing Finish | EMC Coating |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6B |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 50.2 mm |
| Size / Dimension [z] | 1.976 " |
| Style | Side Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.57 | |
| 10 | $ 15.86 | |||
| 25 | $ 14.22 | |||
| 50 | $ 13.46 | |||
Description
General part information
19628061 Series
Hood Connector Side Entry M20 6B IP65 - Dust Tight, Water Resistant
