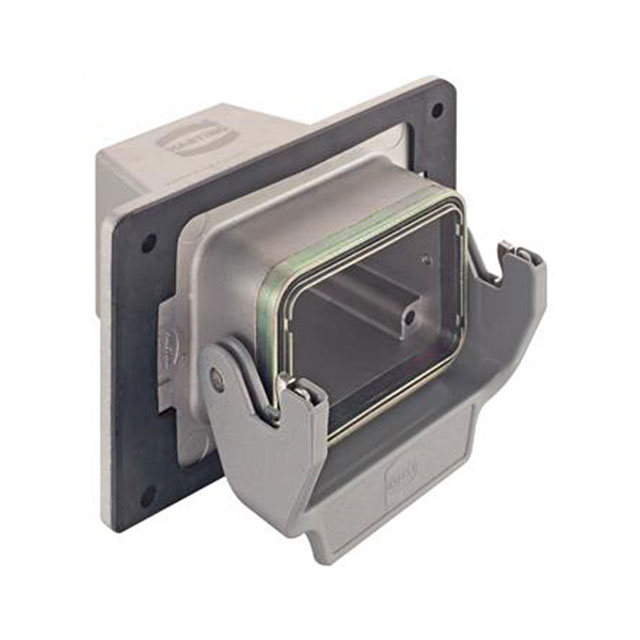

19628061121 - 1962806112(1,2)

19628061121

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 6B

Deep-Dive with AI

Search across all available documentation for this part.

Documents19628061121 Prod Declaration CertDatasheet+2
19628061121 - 1962806112(1,2)

19628061121

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 6B

Deep-Dive with AI

Documents19628061121 Prod Declaration CertDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification19628061121
Connector TypeHood - Panel Mount
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size6B
Size / Dimension [x]4.094 "
Size / Dimension [x]104 mm
Size / Dimension [y]2.776 "
Size / Dimension [y]70.5 mm
Size / Dimension [z]3.165 in
Size / Dimension [z]80.4 mm
StyleTop Entry
Thread SizeM25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 103.28
10$ 78.18
25$ 70.91
50$ 66.18
100$ 62.02
NewarkEach 1$ 96.82
5$ 88.49
10$ 80.16
25$ 73.14
50$ 68.24

Description

General part information

19628061 Series

Hood - Panel Mount Connector Top Entry M25 6B IP65 - Dust Tight, Water Resistant
