180-M15-213R001

Active

MH Connectors

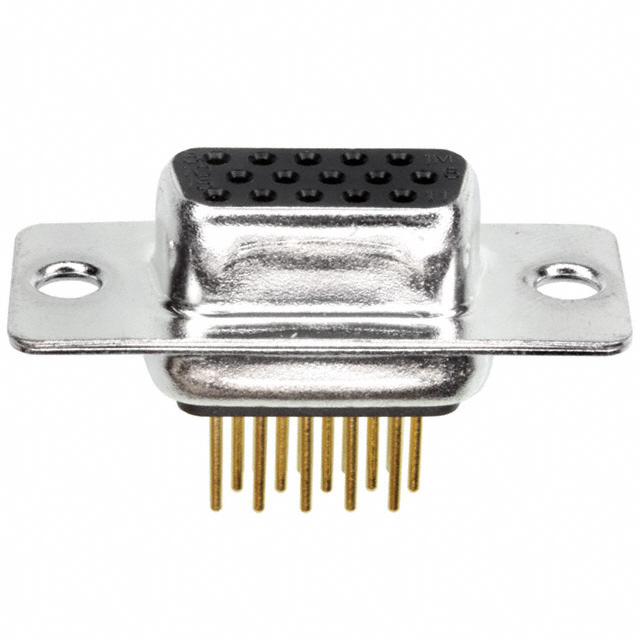

D SUB CONNECTOR, NORCOMP - 180 SERIES, DE, RECEPTACLE, 15, STEEL, THROUGH HOLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

180-M15-213R001

Active

MH Connectors

D SUB CONNECTOR, NORCOMP - 180 SERIES, DE, RECEPTACLE, 15, STEEL, THROUGH HOLE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-M15-213R001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

180-M15 Series

Part	Shell Material, Finish	Contact Finish	Flange Feature	Current Rating (Amps)	Color	Contact Finish Thickness	Features	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Connector Style	Dielectric Material	Number of Rows	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type
MH Connectors 180-M15-103L021	Nickel Plated Steel	Gold	Cable Side	5 A	Black	Flash	Grounding Indents Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	UL94 V-0	24 AWG	28 AWG	Brass	Male Pins Plug	105 ░C	-55 °C
MH Connectors 180-M15-103L001	Nickel Plated Steel	Gold	Housing/Shell (Unthreaded)	5 A	Black	Flash	Grounding Indents Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	UL94 V-0	24 AWG	28 AWG	Brass	Male Pins Plug	105 ░C	-55 °C
MH Connectors 180-M15-213R911	Nickel Plated Steel	Gold	Board Side (4-40) Mating Side Female Screwlock (4-40)	3 A 5 A	Black	Flash	Board Lock Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polyamide (PA9T) Nylon 9T	3	UL94 V-0			Copper Alloy	Receptacle Female Sockets	125 °C	-55 °C	Solder	Panel Mount Through Hole
MH Connectors 180-M15-213R021	Nickel Plated Steel	Gold	4-40 Board Side	5 A	Black	Flash	Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polyamide (PA9T) Nylon 9T	3	UL94 V-0			Copper Alloy	Receptacle Female Sockets	125 °C	-55 °C	Solder	Panel Mount Through Hole
MH Connectors 180-M15-103L031	Nickel Plated Steel	Gold	Female Screwlock (4-40) Mating Side	5 A	Black	Flash	Grounding Indents Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	UL94 V-0	24 AWG	28 AWG	Brass	Male Pins Plug	105 ░C	-55 °C
MH Connectors 180-M15-203L031	Nickel Plated Steel	Gold	Female Screwlock (4-40) Mating Side	3 A	Black	Flash	Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	UL94 V-0	24 AWG	28 AWG	Copper Alloy	Receptacle Female Sockets	125 °C	-55 °C
MH Connectors 180-M15-203L001	Nickel Plated Steel	Gold	Housing/Shell (Unthreaded)	3 A	Black	Flash	Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	UL94 V-0	24 AWG	28 AWG	Copper Alloy	Receptacle Female Sockets	125 °C	-55 °C
MH Connectors 180-M15-113R011	Nickel Plated Steel	Gold	4-40 Board Side	5 A	Black	Flash	Grounding Indents Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polyamide (PA9T) Nylon 9T	3	UL94 V-0			Copper Alloy	Male Pins Plug	125 °C	-55 °C	Solder	Panel Mount Through Hole
MH Connectors 180-M15-213R001	Nickel Plated Steel	Gold	Housing/Shell (Unthreaded)	5 A	Black	Flash	Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polyamide (PA9T) Nylon 9T	3	UL94 V-0			Copper Alloy	Receptacle Female Sockets	125 °C	-55 °C	Solder	Panel Mount Through Hole
MH Connectors 180-M15-103L011	Nickel Plated Steel	Gold	Cable Side	5 A	Black	Flash	Grounding Indents Shielded	15	DE E	1	High Density	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	UL94 V-0	24 AWG	28 AWG	Brass	Male Pins Plug	105 ░C	-55 °C
