180-M15-113R011 - 180-M15-113R011

180-M15-113R011

Active
MH Connectors

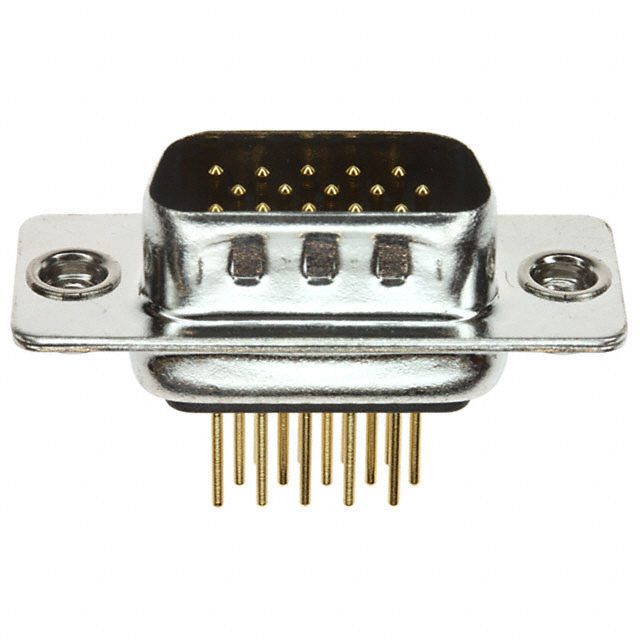

D SUB CONNECTOR, HD15, PLUG, 180 M SERIES, 15 CONTACTS, DE, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMiscellaneous EN+3
180-M15-113R011 - 180-M15-113R011

180-M15-113R011

Active
MH Connectors

D SUB CONNECTOR, HD15, PLUG, 180 M SERIES, 15 CONTACTS, DE, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheetMiscellaneous EN+3

Technical Specifications

Parameters and characteristics for this part

Specification180-M15-113R011
ColorBlack
Connector StyleHigh Density, D-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGrounding Indents, Shielded
Flange FeatureBoard Side, 4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions15
Number of Rows3
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]High Density
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 6.45
10$ 5.83
36$ 5.51
72$ 5.37
108$ 5.10
252$ 4.57
468$ 4.30
972$ 3.76
2412$ 3.57
NewarkEach 10$ 6.52
100$ 5.43
500$ 4.63
1000$ 3.94
5000$ 3.54

Description

General part information

180-M15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
