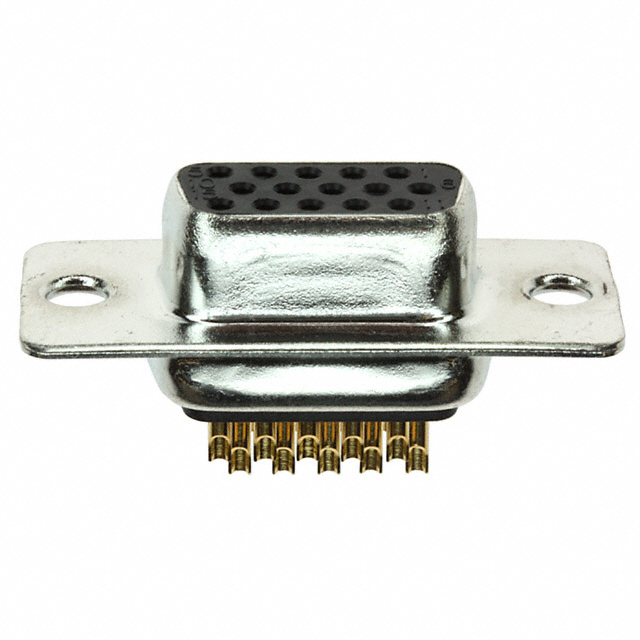

180-M15-203L001
ActiveMH Connectors
D SUB CONNECTOR, NORCOMP - 180 SERIES, DE, RECEPTACLE, 15, STEEL, SOLDER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
180-M15-203L001
ActiveMH Connectors
D SUB CONNECTOR, NORCOMP - 180 SERIES, DE, RECEPTACLE, 15, STEEL, SOLDER ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-M15-203L001 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
180-M15 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
